CY8C24894-24LTXIT
ActiveInfineon Technologies
IC MCU 8BIT 16KB FLASH 56QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CY8C24894-24LTXIT
ActiveInfineon Technologies
IC MCU 8BIT 16KB FLASH 56QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CY8C24894-24LTXIT |
|---|---|
| Core Processor | M8C |
| Core Size | 8-Bit |
| Data Converters [custom] | 47, 2 |
| Data Converters [custom] | 14, 9 |
| Mounting Type | Surface Mount |
| Number of I/O | 50 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

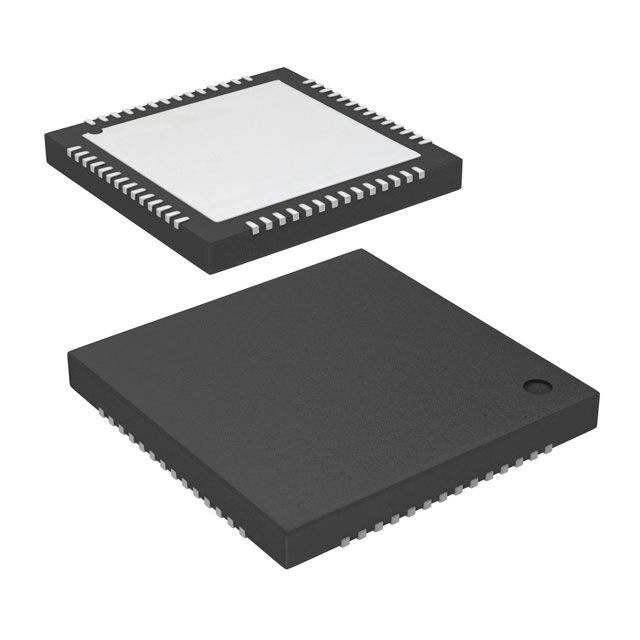

| Package / Case | 56-VFQFN Exposed Pad |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 24 MHz |
| Supplier Device Package | 56-QFN-EP (8x8) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.25 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.54 | |
| 10 | $ 8.62 | |||
| 25 | $ 8.22 | |||
| 100 | $ 7.14 | |||
| 250 | $ 6.82 | |||
| 500 | $ 6.22 | |||
| 1000 | $ 5.41 | |||
| Digi-Reel® | 1 | $ 9.54 | ||
| 10 | $ 8.62 | |||
| 25 | $ 8.22 | |||
| 100 | $ 7.14 | |||
| 250 | $ 6.82 | |||
| 500 | $ 6.22 | |||
| 1000 | $ 5.41 | |||
| Tape & Reel (TR) | 2000 | $ 4.96 | ||
Description
General part information
CY8C24894 Series
M8C PSOC®1 CY8C24xxx Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 56-QFN-EP (8x8)
Documents
Technical documentation and resources
