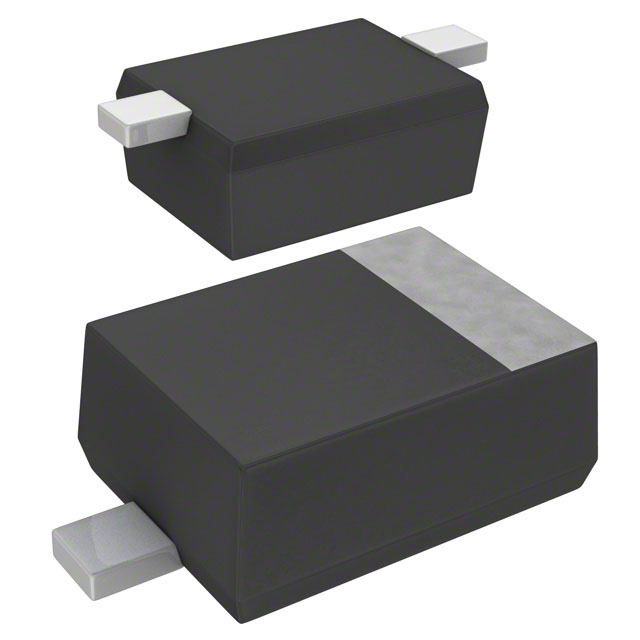

DB2J31600L

Unknown

Panasonic Industrial Automation Sales

DIODE SCHOTT 30V 100MA SMINI2F5B

Search across all available documentation for this part.

Unknown

Panasonic Industrial Automation Sales

DIODE SCHOTT 30V 100MA SMINI2F5B

Technical Specifications

Parameters and characteristics for this part

Specification	DB2J31600L

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	100 mA
Current - Reverse Leakage @ Vr	15 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOD-323F, SC-90
Reverse Recovery Time (trr)	800 ps
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SMini2-F5-B
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If [Max]	550 mV

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Reverse Recovery Time (trr)	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Capacitance @ Vr, F	Mounting Type	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Package / Case	Supplier Device Package	Speed	Speed
Panasonic Industrial Automation Sales DB2J31600L	550 mV	800 ps	125 °C	30 V	Schottky	2 pF	Surface Mount	100 mA	15 µA	SC-90 SOD-323F	SMini2-F5-B	Any Speed	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 100mA Surface Mount SMini2-F5-B
