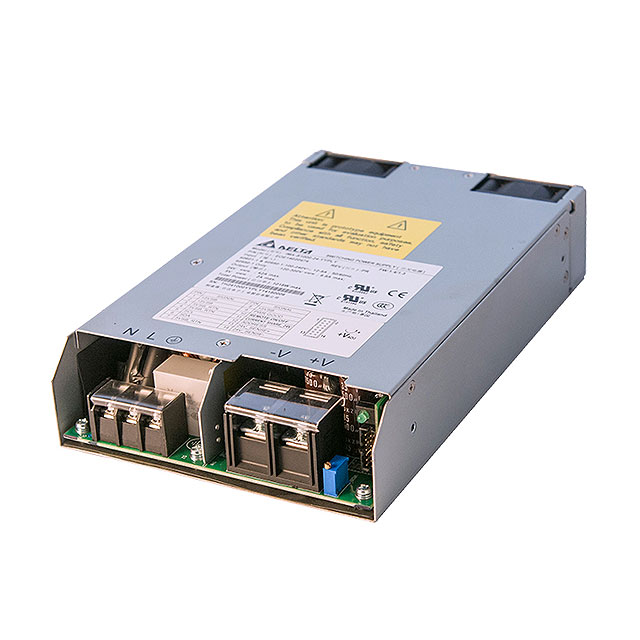

IMA-S1000-48-YYPLI

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 48V 21A 1000W 14-PIN

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 48V 21A 1000W 14-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	IMA-S1000-48-YYPLI

Applications	ITE (Commercial), Medical
Approval Agency	CCC, CE, cURus
Current - Output 1	21 A
Efficiency	94 %
Features	Standby Output, Remote On/Off, Remote Sense, DC Input Capable, Load Sharing, Universal Input, Adjustable Output, PFC, PMBus™
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1 kW
Size / Dimension [x]	209.6 mm
Size / Dimension [x]	8.25 in
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	1.6 "
Size / Dimension [z]	40.6 mm
Type	Enclosed
Voltage - Input [Max]	300 VDC, 275 VAC
Voltage - Input [Min]	80 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Power (Watts)	Number of Outputs	Mounting Type	Current - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Applications	Voltage - Isolation
Delta Electronics IMA-S1000-48-YYPLI	275 VAC 300 VDC	80 VAC 120 VDC	94 %	209.6 mm	1.6 "	5 "	127 mm	40.6 mm	8.25 in	48 V	1 kW	1	Chassis Mount	21 A	Enclosed	-20 °C	70 °C	Adjustable Output DC Input Capable Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	CCC CE cURus	ITE (Commercial) Medical	4000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 80 ~ 275 VAC, 120 ~ 300 VDC Input
