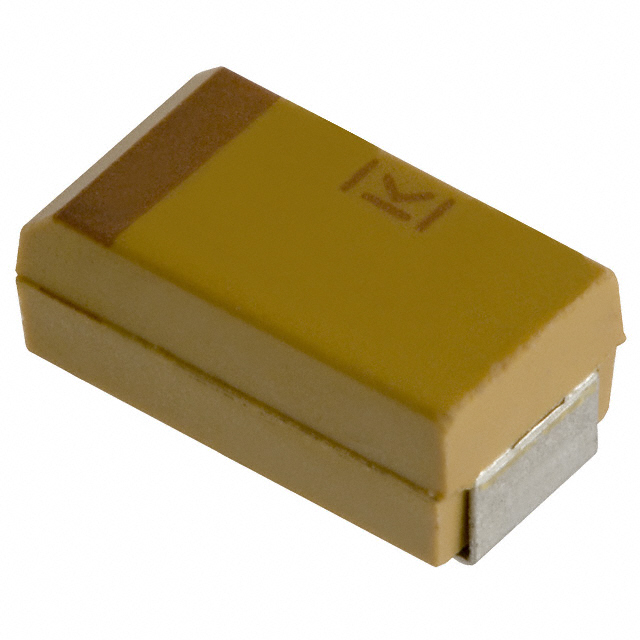

CWR11KH335KB

Active

KEMET

CAP TANT 3.3UF 10% 25V 2312

Search across all available documentation for this part.

Active

KEMET

CAP TANT 3.3UF 10% 25V 2312

Technical Specifications

Parameters and characteristics for this part

Specification	CWR11KH335KB

Capacitance	3.3 µF
ESR (Equivalent Series Resistance)	3.5 Ohms
Failure Rate	B (0.1%)
Features	High Reliability
Grade	Military
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Qualification	MIL-PRF-55365/8
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	10 %
Type	Molded
Voltage - Rated	25 VDC

Part	Qualification	Tolerance	Voltage - Rated	Failure Rate	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Type	Features
KEMET CWR11KH475KPB	MIL-PRF-55365/8	10 %	25 VDC	P	Military	-55 °C	125 °C	4.7 µF	6032 Metric	2312	Surface Mount	3.2 mm	6 mm	0.236 in	0.126 "	2.5 Ohm	Molded	High Reliability
KEMET CWR11KH335KB	MIL-PRF-55365/8	10 %	25 VDC	B (0.1%)	Military	-55 °C	125 °C	3.3 µF	6032 Metric	2312	Surface Mount	3.2 mm	6 mm	0.236 in	0.126 "	3.5 Ohms	Molded	High Reliability

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.07
	Digi-Reel®	1	$ 4.07
	Tape & Reel (TR)	500	$ 1.94

General part information

3.3 µF Molded Tantalum Capacitors 25 V 2312 (6032 Metric) 3.5Ohm
