Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL-L99SM81VY |
|---|---|
| Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | L99SM81V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 99.69 | |
Description
General part information
EVAL-L99SM81VY Series

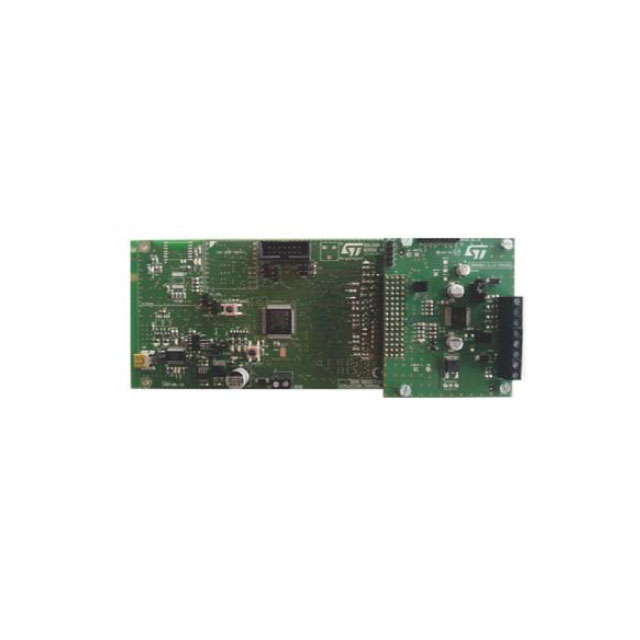

The EVAL-L99SM81VQ is an evaluation board designed to drive one bipolar stepper motor in micro-stepping mode together with coil voltage measurement for stall detection. The evaluation board consists in a motherboard and a daughterboard on which the L99SM81VQ6 is mounted. Both of the evaluation boards provide electronic control modules with enhanced power management power supply functionalities including one standby mode.
The motherboard, based on SPC56 microcontroller, provides the logic section for monitoring and driving the L99SM81VQ6 assembled on the daughterboard.
With the aim of making the board usage and settings simpler, ST provides dedicated user-friendly software with a Graphic User Interface (GUI). This enables the user to set L99SM81VQ6 parameters and at the same time to get real time information from the device, such as voltage measurements, main power supply voltage, fault flags, device junction temperature and much more.
