LDH40PURY

Active

STMicroelectronics

LDO, ADJ, 1.2V TO 22V, 0.8A, DFN-EP-6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDS14147 +5

LDH40PURY

Active

STMicroelectronics

LDO, ADJ, 1.2V TO 22V, 0.8A, DFN-EP-6

Deep-Dive with AI

DocumentsDS14147 +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDH40PURY

Control Features	Enable, Power Good, Current Limit
Current - Output	200 mA
Current - Supply (Max) [Max]	500 µA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Protection Features	Short Circuit, Over Temperature, Under Voltage Lockout (UVLO), Over Current
PSRR [Max]	70 dB
PSRR [Min]	65 dB
Qualification	AEC-Q100

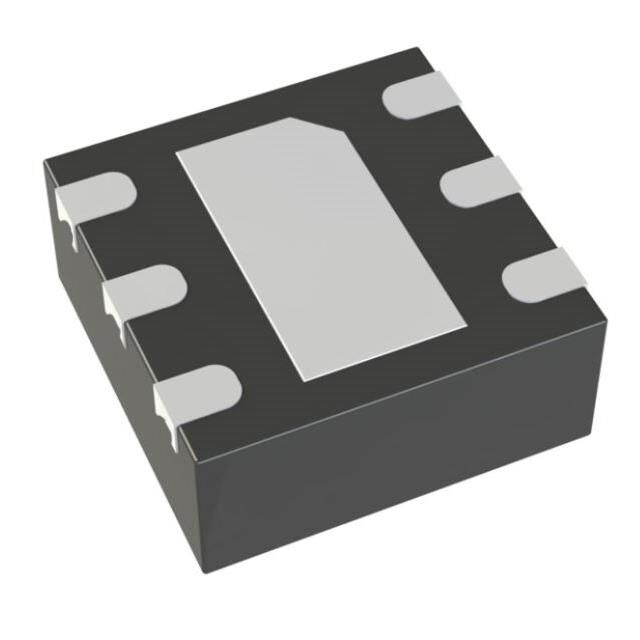

Supplier Device Package	6-DFN (2x2)
Voltage - Output (Max) [Max]	22 V
Voltage - Output (Min/Fixed)	1.2 V
Voltage Dropout (Max) [Max]	1 V

LDH40 Series

200 mA low dropout LDO

Part	PSRR [Min]	PSRR [Max]	Protection Features	Current - Output	Grade	Number of Regulators	Qualification	Voltage - Output (Min/Fixed)	Control Features	Voltage - Output (Max) [Max]	Output Type	Current - Supply (Max) [Max]	Supplier Device Package	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Mounting Type
STMicroelectronics LDH40PURY	65 dB	70 dB	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	200 mA	Automotive	1	AEC-Q100	1.2 V	Current Limit Enable Power Good	22 V	Adjustable	500 µA	6-DFN (2x2)	1 V	150 °C	-40 °C	Positive	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.23
		10	$ 0.89
		25	$ 0.80
		100	$ 0.71
		250	$ 0.67
		500	$ 0.64
		1000	$ 0.62
	Digi-Reel®	1	$ 1.23
		10	$ 0.89
		25	$ 0.80
		100	$ 0.71
		250	$ 0.67
		500	$ 0.64
		1000	$ 0.62
	Tape & Reel (TR)	3000	$ 0.59
		6000	$ 0.58
		9000	$ 0.57
		15000	$ 0.56
Newark	Each (Supplied on Cut Tape)	1	$ 1.23
		10	$ 0.97
		25	$ 0.91
		50	$ 0.85
		100	$ 0.79
		250	$ 0.74
		500	$ 0.70
		1000	$ 0.67

Description

General part information

LDH40 Series

LDH40 is a high accuracy voltage regulator designed to be directly connected to a car battery in automotive applications, or a generic battery connected in industrial applications. Extended input voltage up to 40 V makes the device capable to support a load dump transient, typical in automotive systems. Ultra-low quiescent current at light load increases the battery operation lifetime in always-on-standby systems.

The device is stabilized with a small ceramic capacitor on the input and output.

An enable logic control function puts the LDH40 in shutdown mode allowing a total current consumption lower than 0.3 µA. Thermal protection is also included.
