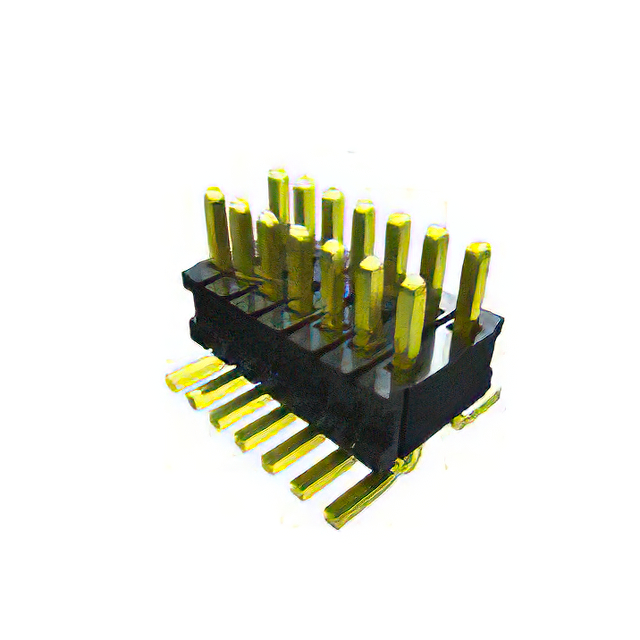

FTR-107-01-G-D-P-TR

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 14 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTR Datasheet FTR Series Other Related Documents 03 +2

FTR-107-01-G-D-P-TR

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 14 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsFTR Datasheet FTR Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTR-107-01-G-D-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

FTR-107 Series

Part	Insulation Material	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Shrouding	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Positions Loaded	Insulation Color	Number of Rows	Termination	Contact Material	Features	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]
Samtec Inc. FTR-107-03-S-D	Liquid Crystal Polymer (LCP)	3.1 A	0.125 in	3.18 mm	30 Áin	0.76 Ám	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Tin	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze
Samtec Inc. FTR-107-02-S-D-P	Liquid Crystal Polymer (LCP)	3.1 A	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Tin	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze	Pick and Place
Samtec Inc. FTR-107-03-L-D-A	Liquid Crystal Polymer (LCP)	3.1 A	0.125 in	3.18 mm	10 çin	0.25 çm	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Tin	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze	Board Guide
Samtec Inc. FTR-107-03-G-D-06	Liquid Crystal Polymer (LCP)	3.1 A	0.125 in	3.18 mm	10 çin	0.25 çm	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Gold	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin		Black	2	Solder	Phosphor Bronze		13	3 µin	0.076 µm
Samtec Inc. FTR-107-01-G-D-P-TR	Liquid Crystal Polymer (LCP)	3.1 A		5.84 mm	10 çin	0.25 çm	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Gold	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze	Pick and Place		3 µin	0.076 µm	0.23 in
Samtec Inc. FTR-107-51-S-D	Liquid Crystal Polymer (LCP)	3.1 A	0.19 "	4.83 mm	30 Áin	0.76 Ám	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Tin	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze
Samtec Inc. FTR-107-02-L-S	Liquid Crystal Polymer (LCP)	3.1 A	0.1 in	2.54 mm	10 çin	0.25 çm	Gold	7	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Tin	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0			Male Pin	All	Black	1	Solder	Phosphor Bronze
Samtec Inc. FTR-107-01-T-D	Liquid Crystal Polymer (LCP)	3.1 A		5.84 mm				14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Tin	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze					0.23 in
Samtec Inc. FTR-107-53-G-D	Liquid Crystal Polymer (LCP)	3.1 A	0.285 in	7.24 mm	10 çin	0.25 çm	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Gold	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze			3 µin	0.076 µm
Samtec Inc. FTR-107-03-G-D-A	Liquid Crystal Polymer (LCP)	3.1 A	0.125 in	3.18 mm	10 çin	0.25 çm	Gold	14	-55 °C	125 °C	0.05 in	1.27 mm	Header	Square	Surface Mount	Gold	0.1 in	2.54 mm	Push-Pull	Unshrouded	UL94 V-0	2.54 mm	0.1 in	Male Pin	All	Black	2	Solder	Phosphor Bronze	Board Guide		3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.98
		10	$ 3.81
	Digi-Reel®	1	$ 4.14
		10	$ 3.76
	Tape & Reel (TR)	175	$ 2.78
		350	$ 2.59
		525	$ 2.48
		875	$ 2.36
		1225	$ 2.28
		1750	$ 2.20
		4375	$ 2.05
