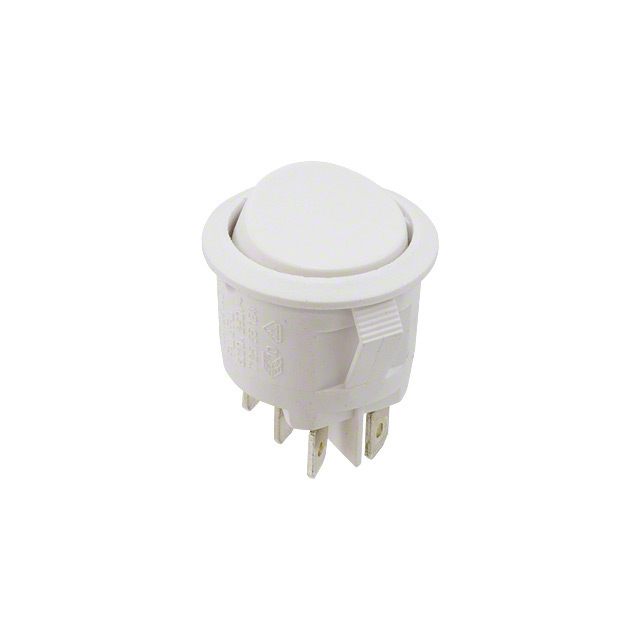

RRA1G32200

Active

E-Switch

SWITCH ROCKER DPDT 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RRA1G32200

Actuator Marking	No Marking
Actuator Type	Round
Approval Agency	UL, cUL
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Approval Agency	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Switch Function	Termination Style	Electrical Life	Circuit	Current Rating (Amps)	Actuator Marking	Actuator Type
E-Switch RRA1G32200	cUL UL	22 mm	White	-20 C	105 ░C	125 V	Panel Mount Snap-In	On-On	Quick Connect - 0.187" (4.7mm)	10000 Cycles	DPDT	10 A	No Marking	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Snap-In
