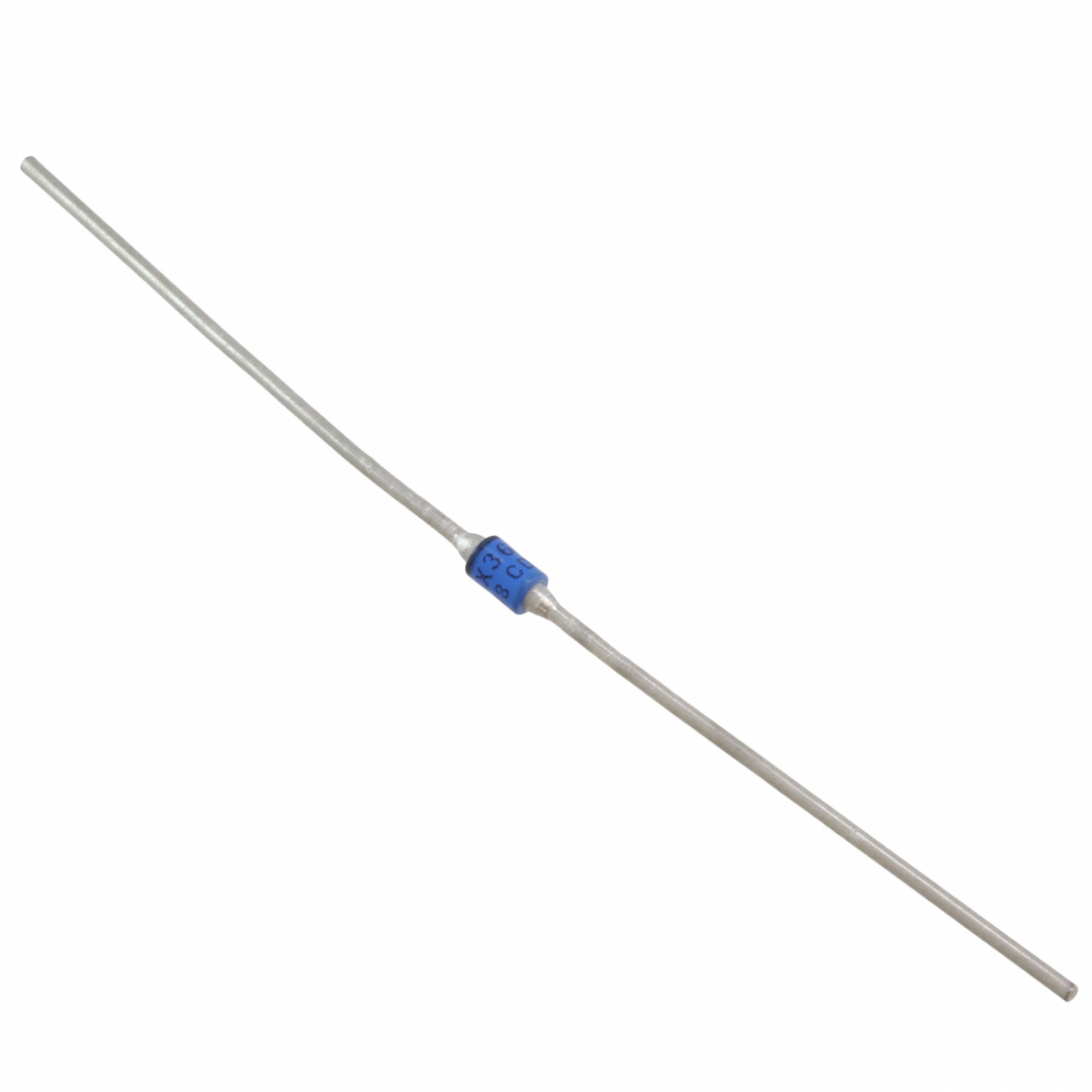

JANTX1N3614
ActiveMicrochip Technology
600V 1A HIGH VOLTAGE RECTIFIER THT A-BODY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsProduct Change Notice EN
JANTX1N3614
ActiveMicrochip Technology
600V 1A HIGH VOLTAGE RECTIFIER THT A-BODY ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsProduct Change Notice EN
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JANTX1N3614 | 1N3614 Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 1 A | 1 A |
| Current - Reverse Leakage @ Vr | 1 µA | 1 µA |
| Grade | Military | Military |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C | -65 C |
| Package / Case | A, Axial | A, Axial |
| Qualification | MIL-PRF-19500/228 | MIL-PRF-19500/228 |
| Speed | Standard Recovery >500ns | Standard Recovery >500ns |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | A, Axial | A, Axial |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 800 V | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
1N3614 Series
RECTIFIER DIODE 800V 1UA 2-PIN AXIAL THROUGH HOLE
| Part | Technology | Grade | Current - Reverse Leakage @ Vr | Mounting Type | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Supplier Device Package | Speed | Speed | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N3614 | ||||||||||||||
Microchip Technology JANTX1N3614 | Standard | Military | 1 µA | Through Hole | 175 ░C | -65 C | A, Axial | 800 V | 1 A | 1.1 V | A, Axial | Standard Recovery >500ns | 200 mA | MIL-PRF-19500/228 |
Microchip Technology 1N3614 | Standard | 1 µA | Through Hole | 175 ░C | -65 C | A, Axial | 800 V | 1 A | 1.1 V | A, Axial | Standard Recovery >500ns | 200 mA | ||
Microchip Technology JAN1N3614 | Standard | Military | 1 µA | Through Hole | 175 ░C | -65 C | A, Axial | 800 V | 1 A | 1.1 V | A, Axial | Standard Recovery >500ns | 200 mA | MIL-PRF-19500/228 |
Microchip Technology JANTX1N3614 | ||||||||||||||
Microchip Technology 1N3614 |
Description
General part information
1N3614 Series
Diode 800 V 1A Through Hole A, Axial
