1-1103415-1
ActiveTE Connectivity AMP Connectors

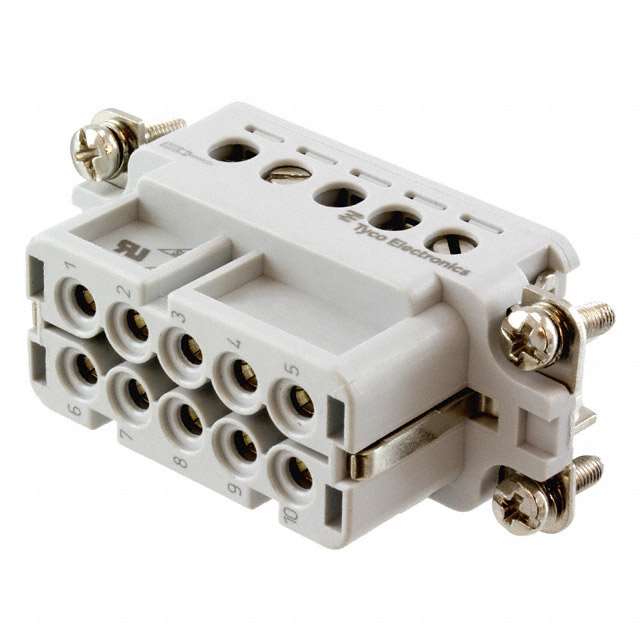

INSERT FEMALE 10POS+1GND SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1103415-1
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 10POS+1GND SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1103415-1 | 1103415 Series |
|---|---|---|
| Color | Beige | Beige |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Silver | Silver |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Female |
| Housing Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 10+Ground | 10+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 2 Liter | 2 Liter |
| Termination Style | Screw | Crimp, Screw |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1103415 Series
INSERT FEMALE 10POS+1GND CRIMP
| Part | Color | Gender | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Number of Positions | Size | Connector Type | Housing Material | Contact Finish | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103415-3 | Beige | Female | 250 VDC | 125 °C | -40 °C | Crimp | 16 A | 10+Ground | 2 Liter | Insert without Contacts | Polybutylene Terephthalate (PBT) | ||
TE Connectivity AMP Connectors 1-1103415-1 | Beige | Female | 250 VDC | 125 °C | -40 °C | Screw | 16 A | 10+Ground | 2 Liter | Polybutylene Terephthalate (PBT) | Silver | UL94 V-0 |
Description
General part information
1103415 Series
Female Insert Beige 10+Ground Position Screw
