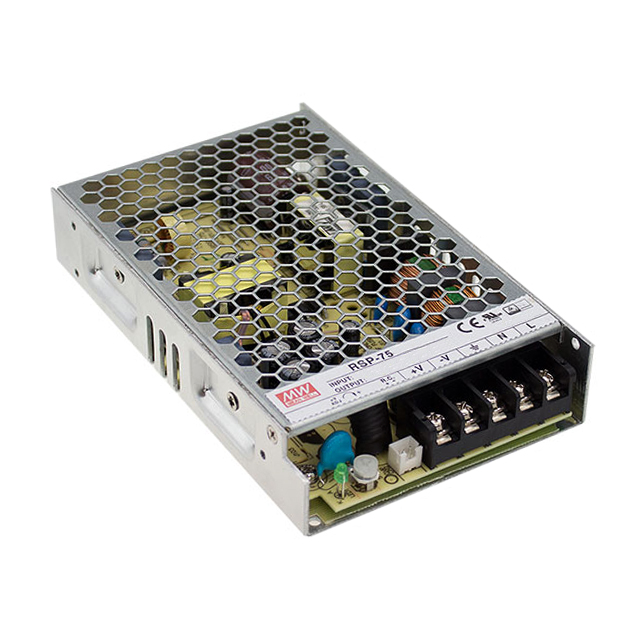

RSP-75-3.3
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSP-75-3.3
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSP-75-3.3 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, cURus, CB, CCC, CE |
| Current - Output 1 | 15 A |
| Efficiency | 76 % |
| Features | PFC, Remote On/Off, Universal Input, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 6.26 in |
| Size / Dimension [x] | 159 mm |
| Size / Dimension [y] | 3.82 in |
| Size / Dimension [y] | 97 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.34 | |
| 5 | $ 33.29 | |||
| 10 | $ 32.45 | |||
| 25 | $ 31.37 | |||
Description
General part information
RSP-75 Series
Enclosed AC DC Converters 1 Output 3.3V 85 ~ 264 VAC, 120 ~ 370 VDC Input
