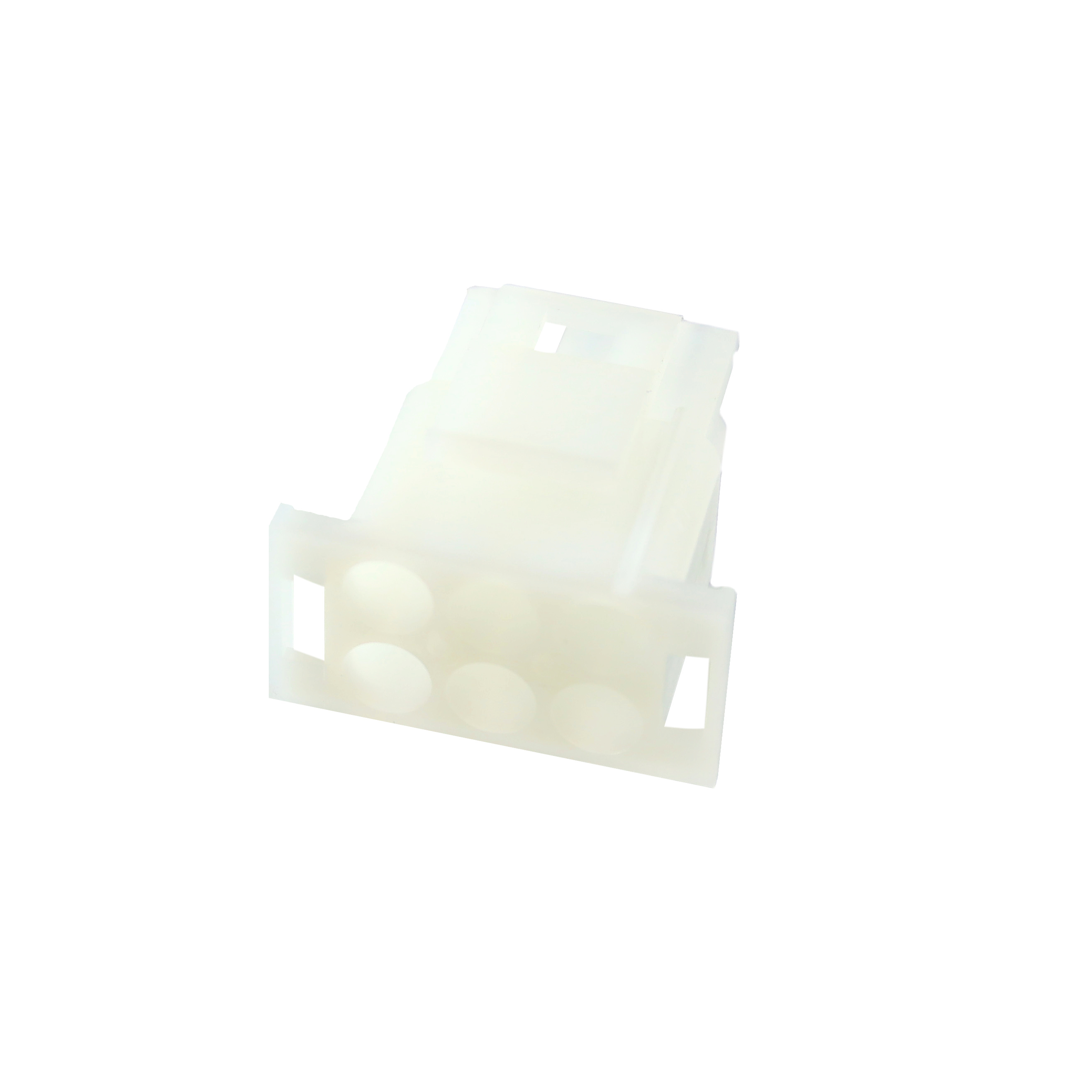

DME-M-06-SQ
ActiveAdam Tech
CONN HOUSING M 6 POS 6.35MM CRIMP ST PANEL MOUNT NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
DME-M-06-SQ
ActiveAdam Tech
CONN HOUSING M 6 POS 6.35MM CRIMP ST PANEL MOUNT NATURAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DME-M-06-SQ |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing | 6.35 mm |
| Row Spacing | 0.25 in |
DME-M Series
| Part | Contact Type | Connector Type | Mounting Type | Contact Termination | Pitch [x] | Pitch [x] | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Note | Color | Number of Positions | Contact Material | Material Flammability Rating | Style | Features | Number of Positions Loaded | Fastening Type | Voltage Rating | Shrouding | Current Rating (Amps) | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Shape | Insulation Height | Insulation Height | Termination | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Male Pin | Plug | Panel Mount Snap-In | Crimp | 0.25 in | 6.35 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | Natural | 2 | |||||||||||||||||||||
Adam Tech | Male Pin | Header | Through Hole Right Angle | 1 | -55 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | 8 | Phosphor Bronze | UL94 V-2 | Board to Cable/Wire | Mounting Flange | All | Locking Ramp | 600 VAC | Shrouded - 4 Wall | 13 A | Tin | 6.35 mm | 0.25 in | 4.06 mm | 0.16 in | Natural | Circular | 9.14 mm | 0.36 in | Solder | |||||||
Adam Tech | Male Pin | Plug | Panel Mount Snap-In | Crimp | 0.25 in | 6.35 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | Natural | ||||||||||||||||||||||
Adam Tech | Male Pin | Plug | Panel Mount Snap-In | Crimp | 0.25 in | 6.35 mm | 3 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | Natural | 9 | 6.35 mm | 0.25 in | |||||||||||||||||||
Adam Tech | Male Pin | Receptacle | Panel Mount Snap-In | Crimp | 1 | -55 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | Natural | ||||||||||||||||||||||||
Adam Tech | Male Pin | Receptacle | Panel Mount Snap-In | Crimp | 1 | -55 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | Natural | 6 | |||||||||||||||||||||||
Adam Tech | Male Pin | Receptacle | Panel Mount Snap-In | Crimp | 2 | -55 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | Natural | 6 | 6.35 mm | 0.25 in | |||||||||||||||||||||
Adam Tech | Male Pin | Header | Through Hole Right Angle | 1 | -55 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Phosphor Bronze | UL94 V-2 | Board to Cable/Wire | Mounting Flange | All | Locking Ramp | 600 VAC | Shrouded - 4 Wall | 13 A | Tin | 6.35 mm | 0.25 in | 4.06 mm | 0.16 in | Natural | Circular | 9.14 mm | 0.36 in | Solder | ||||||||
Adam Tech | Male Pin | Receptacle | Panel Mount Snap-In | Crimp | 2 | -55 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | Natural | 9 | 6.35 mm | 0.25 in | |||||||||||||||||||||
Adam Tech | Male Pin | Header | Through Hole Right Angle | 1 | -55 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | 2 | Phosphor Bronze | UL94 V-2 | Board to Cable/Wire | Mounting Flange | All | Locking Ramp | 600 VAC | Shrouded - 4 Wall | 13 A | Tin | 6.35 mm | 0.25 in | 4.06 mm | 0.16 in | Natural | Circular | 9.14 mm | 0.36 in | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DME-M Series
6 Rectangular Connectors - Housings Receptacle Natural
