5571-15

Active

3M (TC)

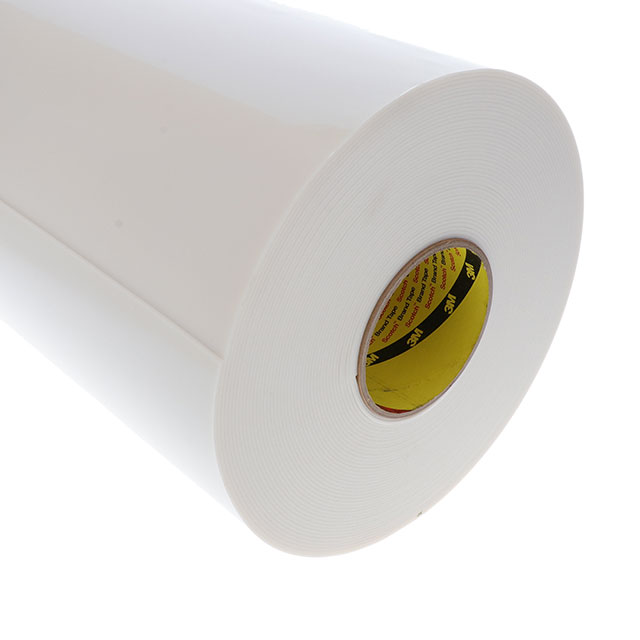

THERM PAD .3M X 20M WHT-YLW

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD .3M X 20M WHT-YLW

Technical Specifications

Parameters and characteristics for this part

Specification	5571-15

Adhesive	Tacky - Both Sides
Backing, Carrier	Polyethylene-Terephthalate (PET)
Material	Acrylic Elastomer
Outline [x]	20 m
Outline [y]	300 mm
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thermal Conductivity	2 W/m-K
Thickness	1.5 mm
Thickness	0.0591 "
Type	Interface Pad, Roll
Usage	Thermally Conductive

Part	Shelf Life Start	Shelf Life	Outline [x]	Outline [y]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Adhesive	Thickness	Thickness	Usage	Thermal Conductivity	Material	Shape	Type	Backing, Carrier
3M (TC) 5571-10	Date of Manufacture	12 Months	20 m	300 mm	70 °F	21 °C	Tacky - Both Sides	0.991 mm	0.039 in	Thermally Conductive	2 W/m-K	Acrylic Elastomer	Rectangular	Interface Pad Roll	Polyethylene-Terephthalate (PET)
3M (TC) 5571-15	Date of Manufacture	12 Months	20 m	300 mm	70 °F	21 °C	Tacky - Both Sides	1.5 mm	0.0591 "	Thermally Conductive	2 W/m-K	Acrylic Elastomer	Rectangular	Interface Pad Roll	Polyethylene-Terephthalate (PET)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	24	$ 600.82

General part information

Thermal Pad White-Yellow 20.00m x 300.00mm Rectangular Tacky - Both Sides

Technical documentation and resources

No documents available
