2987972

Active

Phoenix Contact

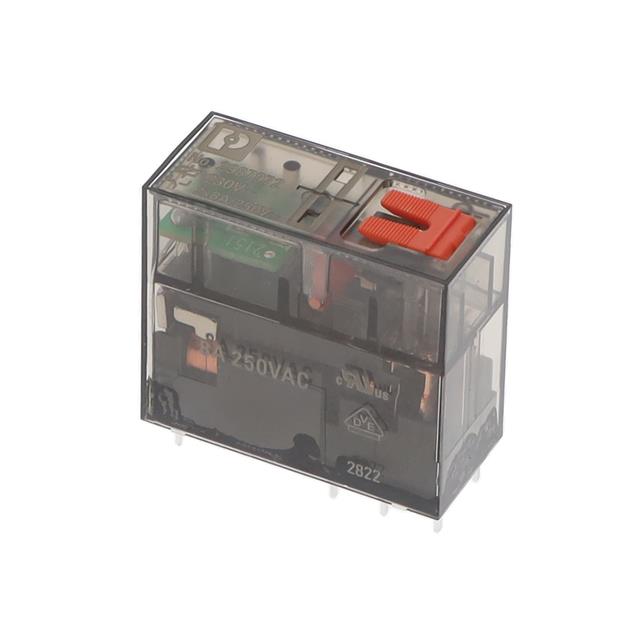

RELAY GEN PURPOSE DPDT 8A 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2987972

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 230V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.23
		10	$ 8.62
		50	$ 7.93
		100	$ 7.33
		250	$ 6.98
		500	$ 6.95

Description

General part information

29879 Series

General Purpose Relay DPDT (2 Form C) 230VAC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	2987972	29879 Series

Approval Agency	cULus, EAC, UR	cULus, EAC, UR
Coil Current	3.5 mA	3.5 - 32 mA
Coil Resistance	65.7 kOhms	1.3 - 750 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	24 - 230 VAC
Contact Form	DPDT (2 Form C)	SPDT (1 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	8 - 16 A
Features	-	Test Button, Lighted Indicator, Diode, Mechanical Indicator
Mounting Type	Through Hole	Through Hole
Operate Time	12 ms	9 - 12 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	8 ms	6 - 8 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	PC Pin	PC Pin

Part	Contact Form	Relay Type	Coil Current	Contact Material	Coil Resistance	Release Time	Coil Voltage	Mounting Type	Contact Rating (Current)	Switching Voltage	Approval Agency	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Features	Operate Time
Phoenix Contact 2987914	SPDT (1 Form C)	General Purpose	3.5 mA	Silver Nickel (AgNi)	65.7 kOhms	8 ms	230 VAC	Through Hole	16 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching
Phoenix Contact 2987985	DPDT (2 Form C)	General Purpose	18 mA	Gold (Au), Silver Nickel (AgNi)	1.33 kOhms	6 ms	24 VDC	Through Hole	8 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching	Diode, Lighted Indicator, Mechanical Indicator, Test Button	9 ms
Phoenix Contact 2987956	DPDT (2 Form C)	General Purpose	32 mA	Silver Nickel (AgNi)	750 Ohms	8 ms	24 VAC	Through Hole	8 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching		12 ms
Phoenix Contact 2987972	DPDT (2 Form C)	General Purpose	3.5 mA	Silver Nickel (AgNi)	65.7 kOhms	8 ms	230 VAC	Through Hole	8 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching		12 ms
Phoenix Contact 2987998	DPDT (2 Form C)	General Purpose	3.5 mA	Gold (Au), Silver Nickel (AgNi)	65.71 kOhms	8 ms	230 VAC	Through Hole	8 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching	Diode, Lighted Indicator, Mechanical Indicator, Test Button	12 ms
Phoenix Contact 2987927	SPDT (1 Form C)	General Purpose	17 mA	Gold (Au), Silver Nickel (AgNi)	1.41 kOhms	6 ms	24 VDC	Through Hole	16 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching	Diode, Lighted Indicator, Mechanical Indicator, Test Button	9 ms
Phoenix Contact 2987930	SPDT (1 Form C)	General Purpose	3.5 mA	Gold (Au), Silver Nickel (AgNi)	65.71 kOhms	8 ms	230 VAC	Through Hole	16 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching	Diode, Lighted Indicator, Mechanical Indicator, Test Button	12 ms
Phoenix Contact 2987969	DPDT (2 Form C)	General Purpose	7 mA	Silver Nickel (AgNi)	8.1 kOhms	8 ms	120 VAC	Through Hole	8 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching		12 ms
Phoenix Contact 2987943	DPDT (2 Form C)	General Purpose	18 mA	Silver Nickel (AgNi)	1.3 kOhms	6 ms	24 VDC	Through Hole	8 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching	Diode, Lighted Indicator, Mechanical Indicator, Test Button	9 ms
Phoenix Contact 2987901	SPDT (1 Form C)	General Purpose	7 mA	Silver Nickel (AgNi)	8.1 kOhms	8 ms	120 VAC	Through Hole	16 A	250 VAC, 250 VDC	cULus, EAC, UR	PC Pin	-40 °C	70 °C	Non Latching	Lighted Indicator, Mechanical Indicator	12 ms

Part

Contact Form

Relay Type

Coil Current

Contact Material

Coil Resistance

Release Time

Coil Voltage

Mounting Type

Contact Rating (Current)

Switching Voltage

Approval Agency

Termination Style

Operating Temperature [Min]

Operating Temperature [Max]

Coil Type

Features

Operate Time

Phoenix Contact

2987914

SPDT (1 Form C)

General Purpose

3.5 mA

Silver Nickel (AgNi)

65.7 kOhms

8 ms

230 VAC

Through Hole

16 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

Phoenix Contact

2987985

DPDT (2 Form C)

General Purpose

18 mA

Gold (Au), Silver Nickel (AgNi)

1.33 kOhms

6 ms

24 VDC

Through Hole

8 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

Diode, Lighted Indicator, Mechanical Indicator, Test Button

9 ms

Phoenix Contact

2987956

DPDT (2 Form C)

General Purpose

32 mA

Silver Nickel (AgNi)

750 Ohms

8 ms

24 VAC

Through Hole

8 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

12 ms

Phoenix Contact

2987972

DPDT (2 Form C)

General Purpose

3.5 mA

Silver Nickel (AgNi)

65.7 kOhms

8 ms

230 VAC

Through Hole

8 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

12 ms

Phoenix Contact

2987998

DPDT (2 Form C)

General Purpose

3.5 mA

Gold (Au), Silver Nickel (AgNi)

65.71 kOhms

8 ms

230 VAC

Through Hole

8 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

Diode, Lighted Indicator, Mechanical Indicator, Test Button

12 ms

Phoenix Contact

2987927

SPDT (1 Form C)

General Purpose

17 mA

Gold (Au), Silver Nickel (AgNi)

1.41 kOhms

6 ms

24 VDC

Through Hole

16 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

Diode, Lighted Indicator, Mechanical Indicator, Test Button

9 ms

Phoenix Contact

2987930

SPDT (1 Form C)

General Purpose

3.5 mA

Gold (Au), Silver Nickel (AgNi)

65.71 kOhms

8 ms

230 VAC

Through Hole

16 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

Diode, Lighted Indicator, Mechanical Indicator, Test Button

12 ms

Phoenix Contact

2987969

DPDT (2 Form C)

General Purpose

7 mA

Silver Nickel (AgNi)

8.1 kOhms

8 ms

120 VAC

Through Hole

8 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

12 ms

Phoenix Contact

2987943

DPDT (2 Form C)

General Purpose

18 mA

Silver Nickel (AgNi)

1.3 kOhms

6 ms

24 VDC

Through Hole

8 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

Diode, Lighted Indicator, Mechanical Indicator, Test Button

9 ms

Phoenix Contact

2987901

SPDT (1 Form C)

General Purpose

7 mA

Silver Nickel (AgNi)

8.1 kOhms

8 ms

120 VAC

Through Hole

16 A

250 VAC, 250 VDC

cULus, EAC, UR

PC Pin

-40 °C

70 °C

Non Latching

Lighted Indicator, Mechanical Indicator

12 ms
