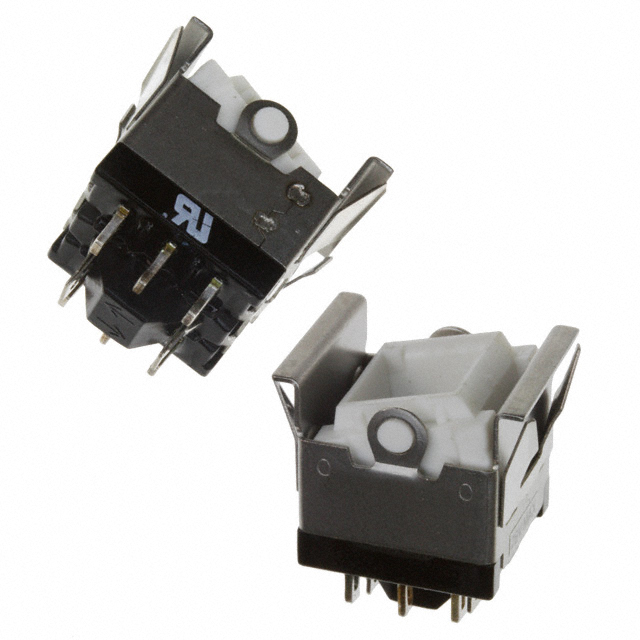

MLW3023/U

Obsolete

NKK Switches

SWITCH ROCKER DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MLW3023/U

Obsolete

NKK Switches

SWITCH ROCKER DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLW3023/U

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	UL
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	18.7 mm
Panel Cutout Dimensions [y]	16.7 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

MLW3023 Series

Part	Termination Style	Current Rating (Amps)	Mounting Type	Circuit	Panel Cutout Dimensions [custom]	Illumination Voltage (Nominal)	Actuator Type	Switch Function	Mechanical Life	Features	Actuator Marking	Illumination Type, Color	Voltage Rating - AC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Approval Agency	Electrical Life	Voltage Rating - DC	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches MLW3023-E-SE-2A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT	19.2 mm˛	2 VDC	Sculptured - Illuminated	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking	LED Yellow	125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	Yellow
NKK Switches MLW3023-C-LC-1A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT		1.85 VDC	Concave (Curved) - Illuminated	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking	LED Red	125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	Red	18.7 mm	16.7 mm
NKK Switches MLW3023/U	Solder Lug	5 A	Panel Mount Snap-In	DPDT			Actuator Arm Cap Required	On-Off-On	30000 Steps	Epoxy Sealed Terminals	Varies by Cap		125 V	-10 °C	50 °C	UL	10000 Cycles			18.7 mm	16.7 mm
NKK Switches MLW3023-28-RD-2A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT	19.2 mm˛	28 VAC/DC	Concave (Curved) - Illuminated	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking	Incandescent Orange	125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	Orange
NKK Switches MLW3023-00RB-1A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT			Concave (Curved)	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking		125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	White	18.7 mm	16.7 mm
NKK Switches MLW3023-00-PF-1A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT			Paddle	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking		125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	Green	18.7 mm	16.7 mm
NKK Switches MLW3023-00-RA-1A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT			Concave (Curved)	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking		125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	Black	18.7 mm	16.7 mm
NKK Switches MLW3023-12-RC-1A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT		12 VAC	Concave (Curved) - Illuminated	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking	Incandescent Red	125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	Red	18.7 mm	16.7 mm
NKK Switches MLW3023-28-RB-2A	Solder Lug	3 A 5 A	Panel Mount Snap-In	DPDT	19.2 mm˛	28 VAC/DC	Concave (Curved) - Illuminated	On-Off-On	30000 Steps	Epoxy Sealed Terminals	No Marking	Incandescent White	125 V	-10 °C	50 °C	UL	10000 Cycles	30 V	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.44
		10	$ 11.24
		25	$ 10.70
Newark	Each	1	$ 23.16
		5	$ 22.00
		10	$ 20.39
		25	$ 18.60
		50	$ 16.10
		100	$ 15.02
		250	$ 13.68

Description

General part information

MLW3023 Series

Rocker Switch DPDT 5A (AC) 125 V Panel Mount, Snap-In
