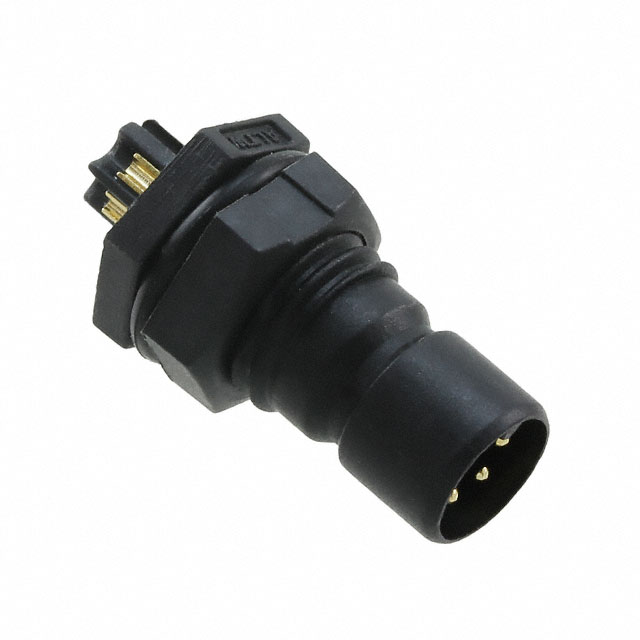

Q8U-05PMMS-QF8001

Active

Amphenol LTW

CONN RCPT MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	Q8U-05PMMS-QF8001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	8-5
Shielding	Unshielded
Voltage Rating	100 V

Part	Primary Material	Color	Ingress Protection	Contact Finish - Mating	Current Rating (Amps)	Shielding	Connector Type	Material Flammability Rating	Contact Material	Shell Size - Insert	Mounting Feature	Voltage Rating	Insert Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation
Amphenol LTW Q8U-05PMMS-QF8001	Plastic	Black	IP68 - Dust Tight Waterproof	Gold	2 A	Unshielded	Male Pins Receptacle	UL94 V-0	Copper Alloy	8-5	Bulkhead - Front Side Nut	100 V	Thermoplastic	Push-Pull	-40 °C	105 ░C	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
