CPDER12V-HF

Active

Comchip Technology

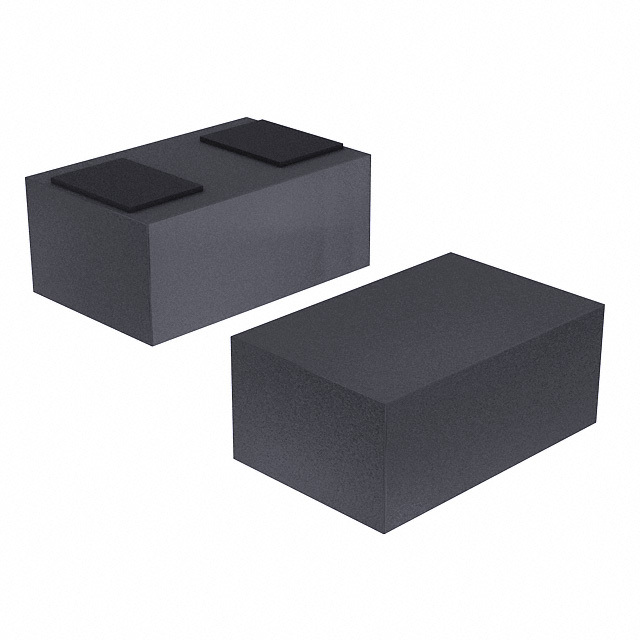

TVS DIODE 12VWM 25V 0503/SOD723F

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 12VWM 25V 0503/SOD723F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDER12V-HF	CPDER12 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	12 pF	12 pF
Current - Peak Pulse (10/1000µs)	1 A	1 A
Mounting Type	Surface Mount	Surface Mount
Power - Peak Pulse	25 W	25 W
Power Line Protection	False	False
Supplier Device Package	0503/SOD-723F	0503/SOD-723F
Type	Zener	Zener
Voltage - Breakdown (Min) [Min]	13 V	13 V
Voltage - Clamping (Max) @ Ipp [Max]	25 V	25 V
Voltage - Reverse Standoff (Typ)	12 V	12 V

TVS DIODE 12VWM 25V 0503/SOD723F

Part	Current - Peak Pulse (10/1000µs)	Type	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Capacitance @ Frequency	Applications	Power Line Protection	Bidirectional Channels [custom]	Mounting Type	Voltage - Reverse Standoff (Typ)
Comchip Technology CPDER12V-HF	1 A	Zener	0503/SOD-723F	13 V	25 W	25 V	12 pF	General Purpose		1	Surface Mount	12 V
Comchip Technology CPDER12V	1 A	Zener	0503/SOD-723F	13 V	25 W	25 V	12 pF	General Purpose		1	Surface Mount	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 0503/SOD-723F
