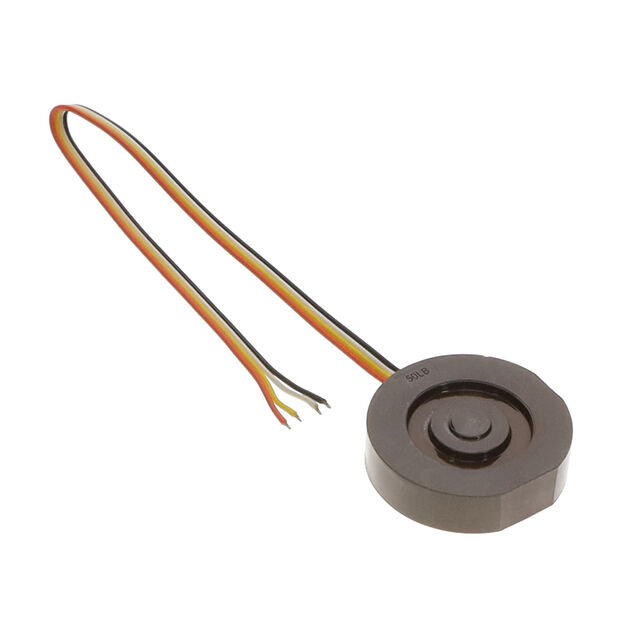

FX292X-100A-0050-L

Active

TE Connectivity Measurement Specialties

50LBF COMPRESSION LOAD CELL, 100

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

50LBF COMPRESSION LOAD CELL, 100

Technical Specifications

Parameters and characteristics for this part

Specification	FX292X-100A-0050-L

Accuracy	1 %
Actuator Type	Pushbutton
Compensated Temperature [Max]	50 °C
Compensated Temperature [Min]	0 °C
Includes	Sensor
Operating Force	55 lbs
Operating Force	25 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Output	Analog Voltage
Sensor Type	Load Cell
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	1 V

Part	Compensated Temperature [Max]	Sensor Type	Operating Force	Operating Force	Actuator Type	Operating Temperature [Max]	Accuracy	Includes	Voltage - Supply [Max]	Voltage - Supply [Min]	Output
TE Connectivity Measurement Specialties FX292X-040B-0050-L	50 °C	Load Cell	55 lbs	25 kgf	Pushbutton	85 °C	1 %	Sensor	6 V	1 V	Analog Voltage
TE Connectivity Measurement Specialties FX292X-040B-0100-L	50 °C	Load Cell	110 lbs	50 kgf	Pushbutton	85 °C	1 %	Sensor	6 V	1 V	Analog Voltage
TE Connectivity Measurement Specialties FX292X-100A-0025-L	50 °C	Load Cell			Pushbutton	85 °C	1 %	Sensor	6 V	1 V	Analog Voltage
TE Connectivity Measurement Specialties FX292X-100A-0050-L	50 °C	Load Cell	55 lbs	25 kgf	Pushbutton	85 °C	1 %	Sensor	6 V	1 V	Analog Voltage
TE Connectivity Measurement Specialties FX292X-040B-0010-L	50 °C	Load Cell	11 lbs	5 kgf	Pushbutton	85 °C	1 %	Sensor	6 V	1 V	Analog Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50LBF COMPRESSION LOAD CELL, 100
