IR3623MTRPBF
ObsoleteInfineon Technologies
IR3623 - HIGH FREQUENCY 2-PHASE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IR3623MTRPBF
ObsoleteInfineon Technologies
IR3623 - HIGH FREQUENCY 2-PHASE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IR3623MTRPBF |
|---|---|
| Clock Sync | True |
| Frequency - Switching [Max] | 1.2 MHz |
| Frequency - Switching [Min] | 200 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 2 |
| Output Type | PWM Signal |

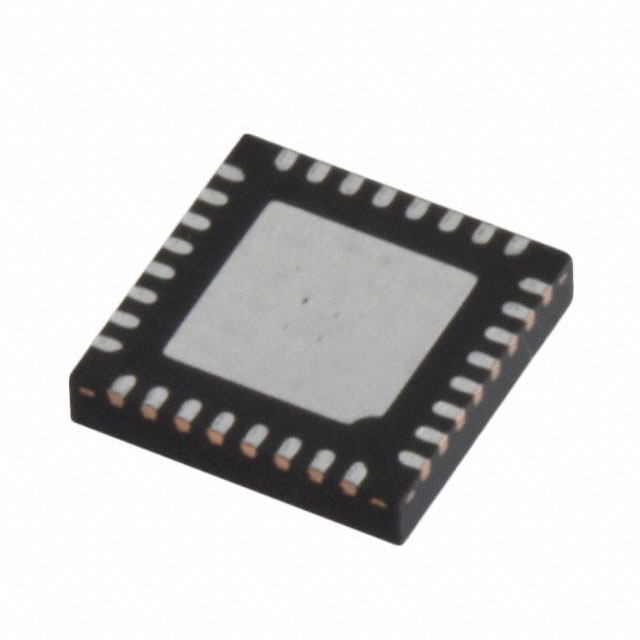

| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-MLPQ (5x5) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) [Max] | 14.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 8.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 217 | $ 1.38 | |
| 217 | $ 1.38 | |||
Description
General part information
IR3623 Series
Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-MLPQ (5x5)
