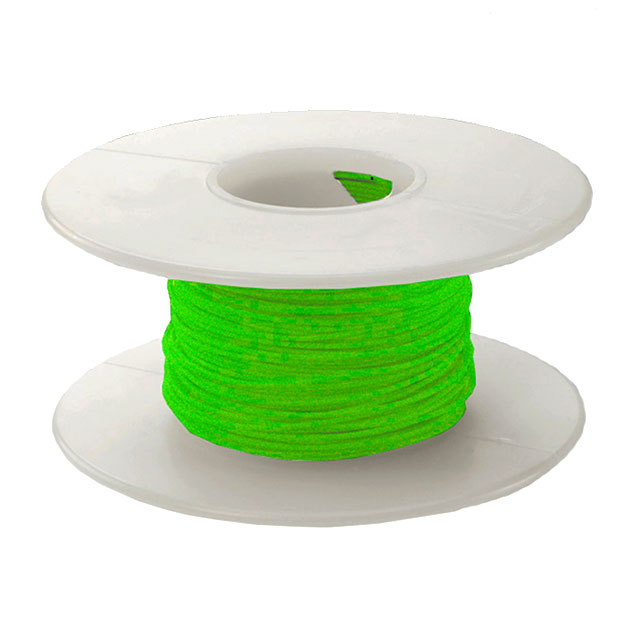

KSW30G-1000

Obsolete

OK INDUSTRIES

WIRE 30AWG GREEN 1000 FT CSW

Search across all available documentation for this part.

Obsolete

OK INDUSTRIES

WIRE 30AWG GREEN 1000 FT CSW

Technical Specifications

Parameters and characteristics for this part

Specification	KSW30G-1000

Conductor Diameter [diameter]	0.25 mm
Conductor Diameter [diameter]	0.01 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.004 in
Jacket (Insulation) Thickness	0.09 mm
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Ratings	UL Style 1423
Wire Gauge	30 AWG

Part	Length [x]	Length	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Jacket (Insulation) Material	Conductor Plating	Length
OK INDUSTRIES KSW30G-0100	100 ft	30.5 m	Green	0.004 in	0.09 mm	UL Style 1423	30 AWG	Copper Bare	0.019 in	0.5 mm	0.25 mm	0.01 in	Polyvinylidene Fluoride (PVDF)	Silver
OK INDUSTRIES KSW30G-1000		304.8 m	Green	0.004 in	0.09 mm	UL Style 1423	30 AWG	Copper Bare	0.019 in	0.5 mm	0.25 mm	0.01 in	Polyvinylidene Fluoride (PVDF)	Silver	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Spool of 1000	1	$ 119.95

General part information

Wire Wrap 30 AWG Green Polyvinylidene Fluoride (PVDF) 1000' (304.80m)
