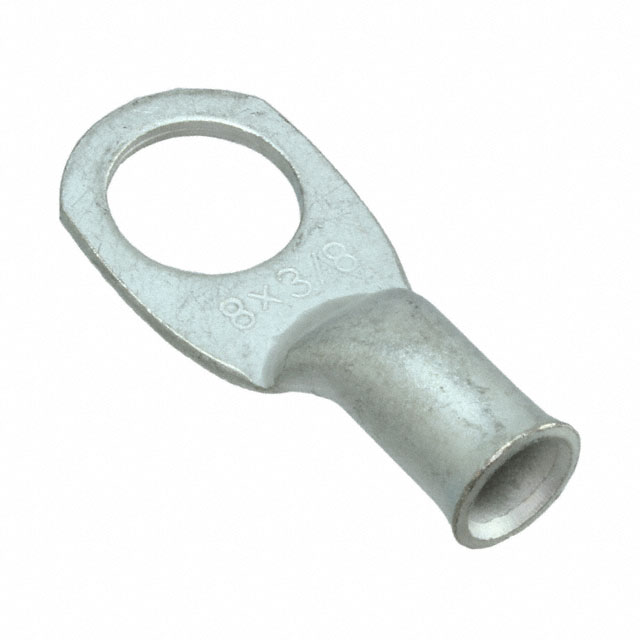

BU-L8-375TIN

Active

Mueller Electric Co

LUG 8 AWG 3/8" STUD TIN

Search across all available documentation for this part.

Active

Mueller Electric Co

LUG 8 AWG 3/8" STUD TIN

Technical Specifications

Parameters and characteristics for this part

Specification	BU-L8-375TIN

Contact Finish	Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall	1.33 in
Length - Overall	33.78 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	3/8 Stud
Terminal Type	Circular Tubular (Battery Lugs)
Termination	Crimp
Thickness	1.4 mm
Thickness	0.055 in
Width - Outer Edges [y]	14.22 mm
Width - Outer Edges [y]	0.56 in
Wire Gauge	8 AWG

Part	Insulation	Length - Overall	Length - Overall	Terminal Type	Stud/Tab Size	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Termination	Mounting Type	Wire Gauge	Thickness	Thickness
Mueller Electric Co BU-L8-375TIN	Non-Insulated	1.33 in	33.78 mm	Circular Tubular (Battery Lugs)	3/8 Stud	Tin	14.22 mm	0.56 in	Copper	Crimp	Free Hanging (In-Line)	8 AWG	1.4 mm	0.055 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 3/8 Stud Circular Tubular (Battery Lugs) 8 AWG Crimp
