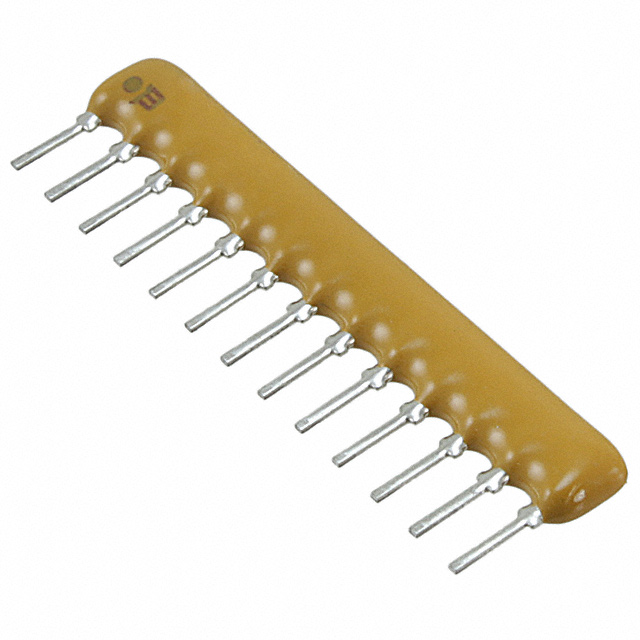

4613X-101-333LF

Active

Bourns Inc.

RES THICK FILM NET 33K OHM 2% 1.63W ±100PPM/°C BUS CONFORMAL COATED 13-PIN SIP PIN THRU-HOLE BULK

Search across all available documentation for this part.

Active

Bourns Inc.

RES THICK FILM NET 33K OHM 2% 1.63W ±100PPM/°C BUS CONFORMAL COATED 13-PIN SIP PIN THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Circuit Type	Package / Case	Mounting Type	Number of Pins	Tolerance	Resistance (Ohms)	Temperature Coefficient	Power Per Element	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance (Ohms)
Bourns Inc. 4613X-101-101LF	-55 °C	125 °C	Bussed	13-SIP	Through Hole	13	2 %	100 Ohms	100 ppm/°C	200 mW	13-SIP	0.098 in	1.298 in	2.49 mm	32.97 mm	5.08 mm	0.2 "
Bourns Inc. 4613X-101-105LF	-55 °C	125 °C	Bussed	13-SIP	Through Hole	13	2 %		100 ppm/°C	200 mW	13-SIP	0.098 in	1.298 in	2.49 mm	32.97 mm	5.08 mm	0.2 "	1M
Bourns Inc. 4613X-101-333LF	-55 °C	125 °C	Bussed	13-SIP	Through Hole	13	2 %		100 ppm/°C	200 mW	13-SIP	0.098 in	1.298 in	2.49 mm	32.97 mm	5.08 mm	0.2 "	33k
Bourns Inc. 4613X-101-222LF	-55 °C	125 °C	Bussed	13-SIP	Through Hole	13	2 %	2.2 kOhms	100 ppm/°C	200 mW	13-SIP	0.098 in	1.298 in	2.49 mm	32.97 mm	5.08 mm	0.2 "
Bourns Inc. 4613X-101-221LF	-55 °C	125 °C	Bussed	13-SIP	Through Hole	13	2 %	220 Ohms	100 ppm/°C	200 mW	13-SIP	0.098 in	1.298 in	2.49 mm	32.97 mm	5.08 mm	0.2 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.14
Newark	Each	1000	$ 0.15
		2500	$ 0.14

General part information

33k Ohm ±2% 200mW Power Per Element Bussed 12 Resistor Network/Array ±100ppm/°C 13-SIP
