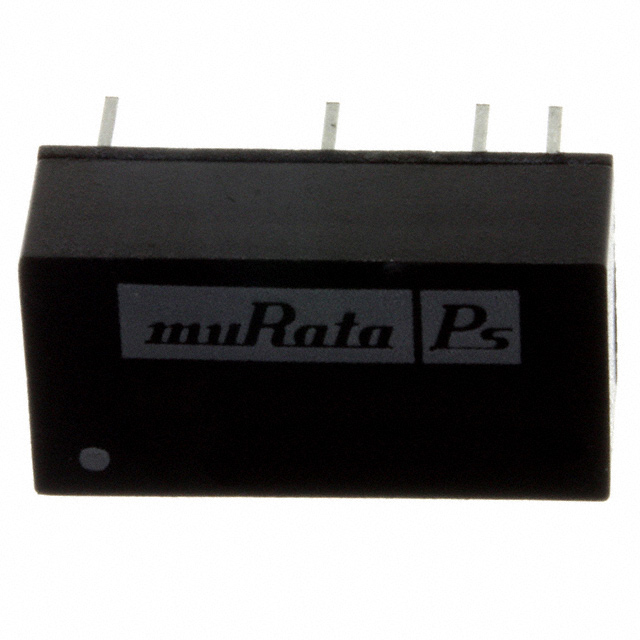

NMA1209DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 55mA, 55mA 10.8V - 13.2V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NMA1209DC	NMA12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	55 mA	55 - 100 mA
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	42 mA
Efficiency	74 %	69 - 75 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	14-DIP Module, 6 Leads, 7-SIP Module, 5 Leads
Size / Dimension	-	9.9 mm
Size / Dimension	-	6.1 mm
Size / Dimension	-	19.6 mm
Size / Dimension [x]	0.77 in, 19.6 mm	0.77 - 19.6 in
Size / Dimension [y]	0.39 ", 9.9 mm	0.24 - 9.9 "
Size / Dimension [z]	0.27 ", 6.9 mm	0.27 - 6.9 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	9 V	5 - 12 V
Voltage - Output 2	-9 V	-12 - -5 V

DC DC CONVERTER +/-9V 1W

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Package / Case	Current - Output (Max)	Type	Efficiency	Mounting Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. NMA1209DC	ITE (Commercial)	85 °C	-40 °C	-9 V	14-DIP Module, 6 Leads	55 mA	Isolated Module	74 %	Through Hole	1000 V	13.2 V	9 V	2	10.8 V	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm
Murata Power Solutions Inc. NMA1205SC	ITE (Commercial)	85 °C	-40 °C	-5 V	7-SIP Module, 5 Leads	100 mA	Isolated Module	69 %	Through Hole	1000 V	13.2 V	5 V	2	10.8 V	0.77 in	0.39 in	0.24 "	9.9 mm	6.1 mm	19.6 mm	100 mA
Murata Power Solutions Inc. NMA1212DC	ITE (Commercial)	85 °C	-40 °C	-12 V	14-DIP Module, 6 Leads		Isolated Module	75 %	Through Hole	1000 V	13.2 V	12 V	2	10.8 V	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm					42 mA	42 mA
Murata Power Solutions Inc. NMA1205DC	ITE (Commercial)	85 °C	-40 °C	-5 V	14-DIP Module, 6 Leads	100 mA	Isolated Module	69 %	Through Hole	1000 V	13.2 V	5 V	2	10.8 V	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm				100 mA
Murata Power Solutions Inc. NMA1209SC	ITE (Commercial)	85 °C	-40 °C	-9 V	7-SIP Module, 5 Leads	55 mA	Isolated Module	74 %	Through Hole	1000 V	13.2 V	9 V	2	10.8 V	0.77 in	0.39 in	0.24 "	9.9 mm	6.1 mm	19.6 mm
