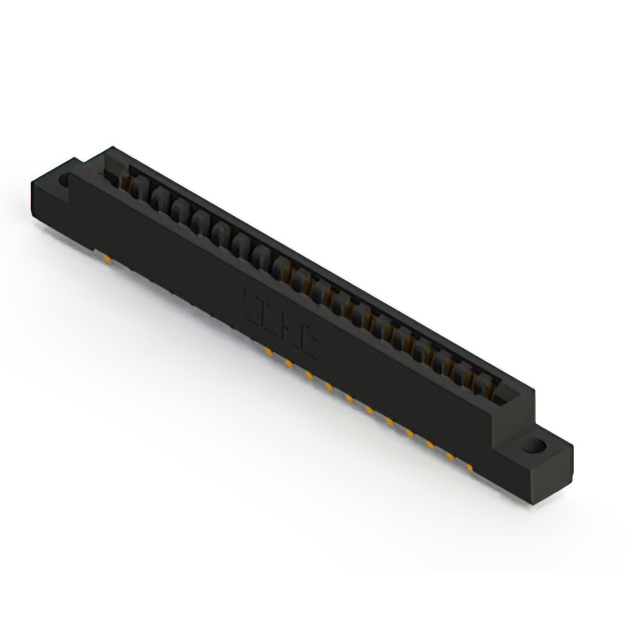

357-019-559-102
ActiveEDAC Inc.
HEADERS AND EDGE TYPE CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-019-559-102
ActiveEDAC Inc.
HEADERS AND EDGE TYPE CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-019-559-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-019 Series
...
| Part | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Termination | Number of Positions/Bay/Row [custom] | Gender | Termination Rows | Pitch [x] | Pitch [x] | Number of Positions | Flange Feature | Contact Type | Card Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material | Number of Rows | Color | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | 19 | Female | 1 | 0.156 in | 3.96 mm | 38 | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | Non Specified - Dual Edge | Tin | -40 °C | 105 ░C | Through Hole | Copper Alloy | 2 | Black | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | 19 | Female | 1 | 0.156 in | 3.96 mm | 38 | Flush Mount Side Opening Unthreaded | Semi Bellows | Non Specified - Dual Edge | Gold | -40 °C | 105 ░C | Through Hole | Copper Alloy | 2 | Black | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | 19 | Female | 1 | 0.156 in | 3.96 mm | 19 | Flush Mount Top Opening Unthreaded | Semi Bellows | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Through Hole Right Angle | Copper Alloy | 1 | Black | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | 19 | Female | 1 | 0.156 in | 3.96 mm | 19 | Floating Bobbin Flush Mount | Semi Bellows | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Through Hole Right Angle | Copper Alloy | 1 | Black | 2.95 mm | 0.116 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | 19 | Female | 1 | 0.156 in | 3.96 mm | 19 | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Through Hole | Copper Alloy | 1 | Black | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Wire Wrap | 19 | Female | 1 | 0.156 in | 3.96 mm | 38 | Flush Mount Top Opening Unthreaded | Semi Bellows | Non Specified - Dual Edge | Gold | -40 °C | 105 ░C | Through Hole Right Angle | Copper Alloy | 2 | Black | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Wire Wrap | 19 | Female | 1 | 0.156 in | 3.96 mm | 19 | Flush Mount Side Opening Unthreaded | Semi Bellows | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Through Hole | Copper Alloy | 1 | Black | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | 19 | Female | 1 | 0.156 in | 3.96 mm | 38 | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Non Specified - Dual Edge | Gold | -40 °C | 105 ░C | Through Hole Right Angle | Copper Alloy | 2 | Black | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Wire Wrap | 19 | Female | 1 | 0.156 in | 3.96 mm | 38 | Flush Mount Top Opening Unthreaded | Semi Bellows | Non Specified - Dual Edge | Gold | -40 °C | 105 ░C | Through Hole | Copper Alloy | 2 | Black | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder Eyelet(s) | 19 | Female | 1 | 0.156 in | 3.96 mm | 38 | Floating Bobbin Flush Mount | Semi Bellows | Non Specified - Dual Edge | Gold | -40 °C | 105 ░C | Surface Mount | Copper Alloy | 2 | Black | 2.95 mm | 0.116 in | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.91 | |
Description
General part information
357-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
