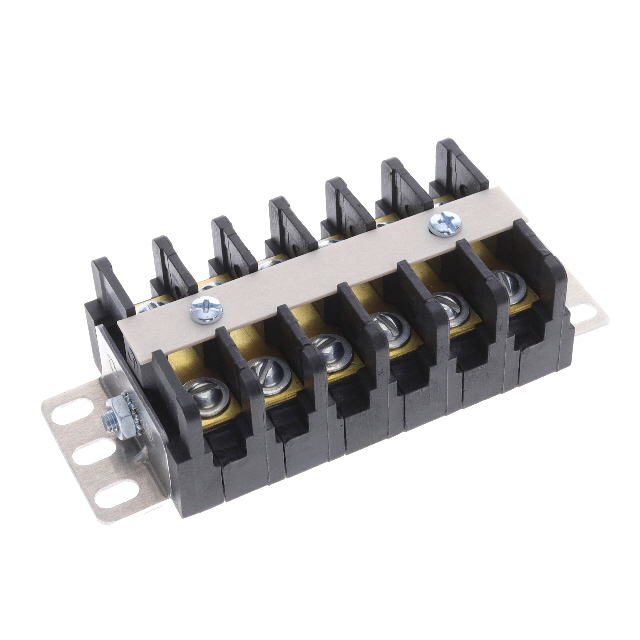

CDM-6

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.546"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDM-6

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.546"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.51
		10	$ 19.69
		30	$ 19.01
		50	$ 18.32
		100	$ 17.78
		250	$ 17.44
		500	$ 17.09

Description

General part information

CDM Series

6 Circuit 0.546" (13.86mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Specification	CDM-6	CDM Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Closed	Closed
Current Rating (Amps)	30 A	30 A
Features	Marking Strip, Flange	Marking Strip, Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	6	1 - 49
Number of Circuits	-	8
Number of Rows	2	2
Number of Wire Entries	12	2 - 98
Number of Wire Entries	-	80
Operating Temperature	130 °C	130 °C
Pitch [x]	0.546 in	0.546 in
Pitch [x]	13.86 mm	13.86 mm
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	10 AWG	10 AWG

Part

Voltage Rating

Barrier Type

Number of Rows

Features

Mounting Type

Top Termination

Number of Wire Entries

Material Flammability Rating

Bottom Termination

Pitch [x]

Operating Temperature

Current Rating (Amps)

Material - Insulation

Wire Gauge [Max]

Wire Gauge [Min]

Terminal Block Type

Number of Circuits

Number of Circuits [custom]

Number of Wire Entries [custom]

Curtis Industries

CDM-16

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-42

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-13

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-36

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-15

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-8

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-20

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-32

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-6

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Curtis Industries

CDM-5

600 V

2 Wall (Dual)

Flange, Marking Strip

Chassis, Panel

Screws

UL94 V-0

Closed

0.546 in

13.86 mm

130 °C

30 A

Polyester Thermoplastic

22 AWG

10 AWG

Barrier Block

Part	Voltage Rating	Barrier Type	Number of Rows	Features	Mounting Type	Top Termination	Number of Wire Entries	Material Flammability Rating	Bottom Termination	Pitch [x]	Pitch [x]	Operating Temperature	Current Rating (Amps)	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Block Type	Number of Circuits	Number of Circuits [custom]
Curtis Industries CDM-16	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	32	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	16
Curtis Industries CDM-42	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	84	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	42
Curtis Industries CDM-13	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	26	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	13
Curtis Industries CDM-36	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	72	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	36
Curtis Industries CDM-15	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	30	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	15
Curtis Industries CDM-8	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	16	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block		8
Curtis Industries CDM-20	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	40	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	20
Curtis Industries CDM-32	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	64	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	32
Curtis Industries CDM-6	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	12	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	6
Curtis Industries CDM-5	600 V	2 Wall (Dual)	2	Flange, Marking Strip	Chassis, Panel	Screws	10	UL94 V-0	Closed	0.546 in	13.86 mm	130 °C	30 A	Polyester Thermoplastic	22 AWG	10 AWG	Barrier Block	5
