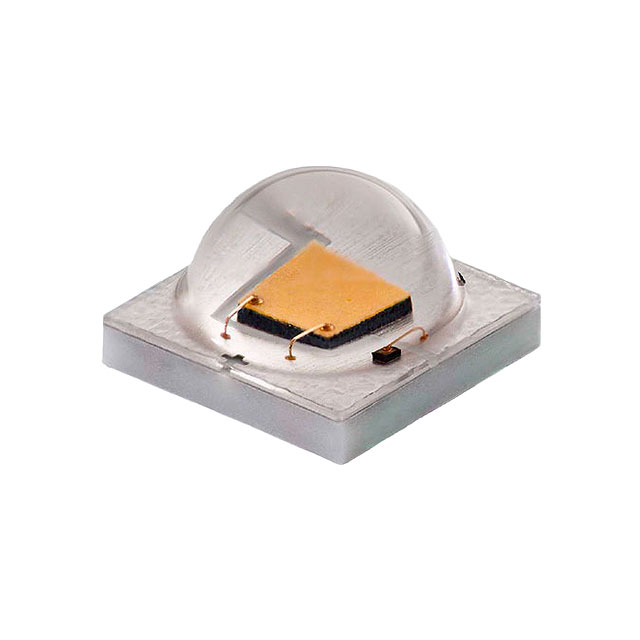

XPEBRO-L1-R250-00702

Active

Cree LED

LED XLAMP XPE2 RED-ORG 613NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPEBRO-L1-R250-00702

Active

Cree LED

LED XLAMP XPE2 RED-ORG 613NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPEBRO-L1-R250-00702	XPEBRO Series

Color	Red-Orange	Red-Orange
Current - Max [Max]	1 A	1 - 1.5 A
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Lumens/Watt @ Current - Test	92 lm/W	92 - 135 lm/W
Luminous Flux @ Current/Temperature	71 lm	71 - 104 lm
Luminous Flux @ Current/Temperature [Max]	74 lm	74 - 107 lm
Luminous Flux @ Current/Temperature [Min]	67 lm	67 - 100 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	SMD	SMD, 1414
Viewing Angle	130 °	130 °
Voltage - Forward (Vf) (Typ)	2.2 V	2.18 - 2.2 V
Wavelength	613 nm	613 - 618 nm
Wavelength [Max]	615 nm	615 - 620 nm
Wavelength [Min]	610 nm	610 nm

XPEBRO Series

LED XLAMP XPE2 RED-ORG 613NM SMD

Part	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength [Max]	Wavelength [Min]	Wavelength	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Current - Test	Package / Case	Package / Case	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Current - Max [Max]	Color
Cree LED XPEBRO-L1-0000-00702	2.2 V	130 °	615 nm	610 nm	613 nm	92 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414	74 lm	67 lm	71 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-0000-00802	2.2 V	130 °	615 nm	610 nm	613 nm	100 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414	81 lm	74 lm	77 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-0000-00701	2.2 V	130 °	620 nm	610 nm		92 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414	74 lm	67 lm	71 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-R250-00703	2.2 V	130 °			618 nm	92 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414	74 lm	67 lm	71 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-R250-00702	2.2 V	130 °	615 nm	610 nm	613 nm	92 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414	74 lm	67 lm	71 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-0000-00E01	2.18 V	130 °					3.45 mm	0.136 in	0.136 in	3.45 mm	1414	350 mA	3535 Metric	1414				2.39 mm	0.094 "	Surface Mount	1.5 A	Red-Orange
Cree LED XPEBRO-L1-0000-00B02	2.2 V	130 °	615 nm	610 nm	613 nm	126 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414			97 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-R250-00C02	2.2 V	130 °	615 nm	610 nm	613 nm	135 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414	107 lm	100 lm	104 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-0000-00A02	2.2 V	130 °	615 nm	610 nm	613 nm	118 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414	94 lm	87 lm	91 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange
Cree LED XPEBRO-L1-R250-00B01	2.2 V	130 °	620 nm	610 nm		126 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	350 mA	3535 Metric	1414			97 lm	2.39 mm	0.094 "	Surface Mount	1 A	Red-Orange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 1.39
		500	$ 1.30
		1250	$ 1.20

Description

General part information

XPEBRO Series

LED Lighting Color XLamp® XP-E2 Red-Orange 613nm (610nm ~ 615nm) 1414 (3535 Metric)
