2834504

Active

Phoenix Contact

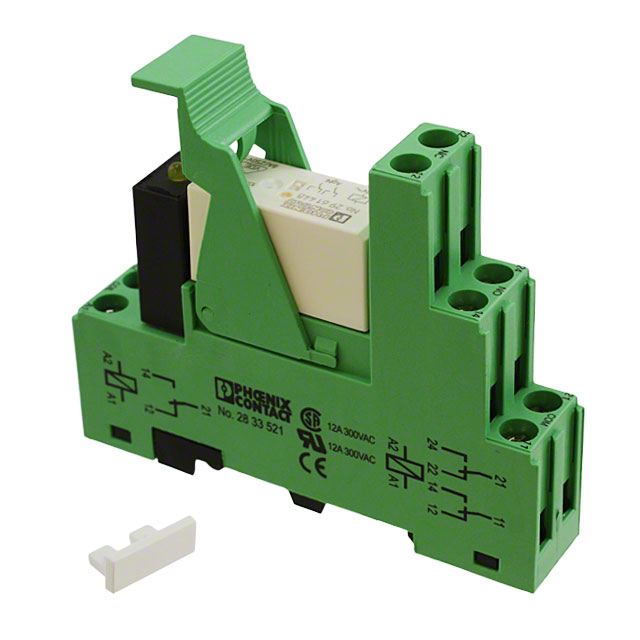

RELAY GEN PURPOSE DPDT 8A 120V

Deep-Dive with AI

Search across all available documentation for this part.

2834504

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

28345 Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil DIN Rail

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2834504	28345 Series

Coil Current	7 mA	5.5 - 26 mA
Coil Resistance	17.1 kOhms	17.1 - 1263 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC	24 - 230 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	8 A
Features	Lighted Indicator, Varistor, Socket Included	Varistor, Lighted Indicator, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	12 ms	8 - 12 ms
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	16 ms	10 - 22 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal

28345 Series

RELAY GEN PURPOSE DPDT 8A 120V

Part	Contact Rating (Current)	Coil Voltage	Mounting Type	Coil Type	Relay Type	Features	Operate Time	Release Time	Contact Form	Switching Voltage	Contact Material	Coil Current	Coil Resistance	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 2834546	8 A	120 VAC	DIN Rail	Non Latching	General Purpose	Lighted Indicator, Varistor	12 ms	16 ms	DPDT (2 Form C)	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	7 mA	17.14 kOhms	Screw Terminal	-25 °C	60 °C
Phoenix Contact 2834520	8 A	24 VDC	DIN Rail	Non Latching	General Purpose	Diode, Lighted Indicator, Socket Included	8 ms	10 ms	DPDT (2 Form C)	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	19 mA	1263 Ohms	Screw Terminal	-25 °C	60 °C
Phoenix Contact 2834504	8 A	120 VAC	DIN Rail	Non Latching	General Purpose	Lighted Indicator, Socket Included, Varistor	12 ms	16 ms	DPDT (2 Form C)	250 VAC, 250 VDC	Silver Nickel (AgNi)	7 mA	17.1 kOhms	Screw Terminal	-25 °C	60 °C
Phoenix Contact 2834533	8 A	24 VAC	DIN Rail	Non Latching	General Purpose	Lighted Indicator, Varistor	12 ms	14 ms	DPDT (2 Form C)	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	26 mA	923.08 Ohms	Screw Terminal	-25 °C	60 °C
Phoenix Contact 2834559	8 A	230 VAC	DIN Rail	Non Latching	General Purpose	Lighted Indicator, Varistor	12 ms	22 ms	DPDT (2 Form C)	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	5.5 mA	41.82 kOhms	Screw Terminal	-25 °C	60 °C
Phoenix Contact 2834517	8 A	230 VAC	DIN Rail	Non Latching	General Purpose	Lighted Indicator, Socket Included, Varistor	12 ms	22 ms	DPDT (2 Form C)	250 VAC, 250 VDC	Silver Nickel (AgNi)	5.5 mA	41.8 kOhms	Screw Terminal	-25 °C	60 °C
Phoenix Contact 2834591	8 A	230 VAC	DIN Rail	Non Latching	General Purpose	Lighted Indicator, Socket Included	12 ms	22 ms	DPDT (2 Form C)	250 VAC, 250 VDC	Silver Nickel (AgNi)	5.5 mA	41.8 kOhms	Spring Terminal	-25 °C	60 °C
