H3DKH-4018M

Active

Assmann WSW Components

IDC CBL - HHKR40H/AE40M/HHPK40H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR40H/AE40M/HHPK40H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DKH-4018M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Strain Relief (Socket)
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Features	Contact Finish	Shielding	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Number of Positions	Connector Type	Cable Termination	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color
Assmann WSW Components H3DKH-4036G	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Gold	Unshielded	3 ft	914.4 mm	0.05 "	1.27 mm	40	Socket to Plug	IDC	0.1 in	2.54 mm	2	15 µin	0.38 µm
Assmann WSW Components H3DKH-4018G	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Gold	Unshielded	1.5 ft	457.2 mm	0.05 "	1.27 mm	40	Socket to Plug	IDC	0.1 in	2.54 mm	2	15 µin	0.38 µm
Assmann WSW Components H3DKH-4018M	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Gold	Unshielded	1.5 ft	457.2 mm	0.05 "	1.27 mm	40	Socket to Plug	IDC	0.1 in	2.54 mm	2	15 µin	0.38 µm	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

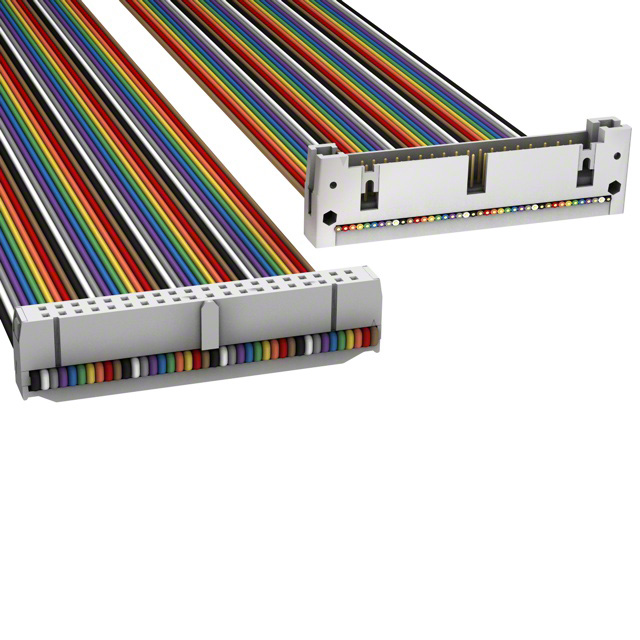

40 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
