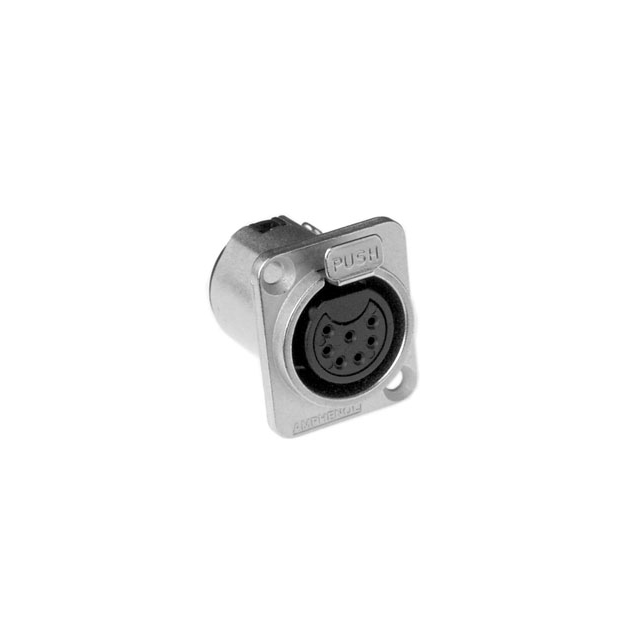

AC7FDZ

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 7POS SOLDER

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 7POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	AC7FDZ

Applications	Audio
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Ground
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded

CONN PLUG FMALE XLR 7POS SOLDER

Part	Features	Color	Applications	Shielding	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Feature	Number of Positions	Fastening Type	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Connector Type	Orientation	Shell Material	Shell Finish	Shell Size - Insert	Material Flammability Rating
AMPHENOL AUDIO AC7FDZ	Ground	Silver	Audio	Shielded	Metal	-25 °C	75 ░C	Brass	Flange	7	Latch Lock	Gold	IP40	5 A	Female Sockets, Plug	Keyed	Zinc Die Cast	Nickel	XLR	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 12.69

General part information

7 Position Circular Connector Plug, Female Sockets Solder Cup
