NHD-C12864A1Z-FSB-FBW-HTT

Active

Newhaven Display Intl

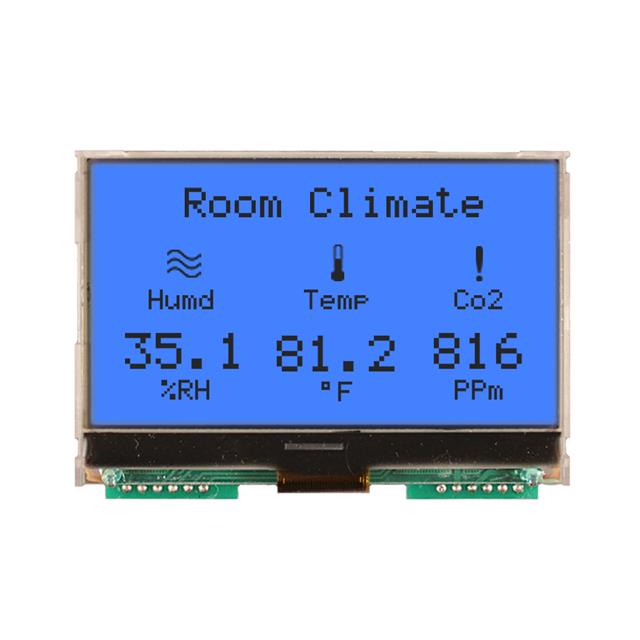

LCD COG GRAPH 128X64 BLUE BKLT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Solvent Precautions LCD Safe Handling Procedure +1

NHD-C12864A1Z-FSB-FBW-HTT

Active

Newhaven Display Intl

LCD COG GRAPH 128X64 BLUE BKLT

Deep-Dive with AI

DocumentsLCD Solvent Precautions LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.08
		5	$ 24.48

Description

General part information

NHD-C12864 Series

Graphic LCD Display Module Transflective Black (Blue - Inverted) FSTN - Film Super-Twisted Nematic SPI 128 x 64

Documents

Technical documentation and resources

LCD Solvent Precautions

LCD Safe Handling Procedure

Datasheet

Specification	NHD-C12864A1Z-FSB-FBW-HTT	NHD-C12864 Series

	-	-
Background Color	Blue (Black - Inverted)	Gray, Blue, Black, Yellow (Black - Inverted), White, Blue (Black - Inverted), Green, Red
Background Color	-	White, White - Inverted, Black
Backlight	LED - Blue	LED - White, Without Backlight, LED - Blue, LED, Red, Green, Blue, LED - Red
Controller Type	ST-7565V	ST-7565R, ST7565P-G, ST7565R, ST-7565V, ST7565R-G, SPLC-501C
Display Mode	Transflective	Transflective, Reflective, Transmissive
Display Type	FSTN - Film Super-Twisted Nematic	STN - Super-Twisted Nematic, FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.52 mm	0.24 - 0.52 mm
Dot Pitch [y]	0.52 mm	0.3 - 0.56 mm
Dot Pixels [x]	128	128
Dot Pixels [y]	64	64
Dot Size	-	0.27 - 0.51 mm
Dot Size	-	0.23 - 0.47 mm
Dot Size	-	0.27 mm
Dot Size	-	0.35 mm
Dot Size	-	0.35 mm
Dot Size [custom]	0.48 mm	0.48 mm
Dot Size [custom]	0.48 mm	0.48 mm
Graphics Color	Black	Blue, Black (Gray - Inverted), White, Black
Graphics Color	-	Red
Interface	SPI	Parallel/Serial, Parallel, SPI, Parallel, 8-Bit, Serial
Viewing Area	-	40 mm
Viewing Area	-	65.5 mm
Viewing Area	-	24 - 26.67 mm
Viewing Area [x]	70.7 mm	33.8 - 70.7 mm
Viewing Area [y]	38.8 mm	22.2 - 49.53 mm

Part

Dot Pixels [y]

Dot Pixels [x]

Backlight

Graphics Color

Viewing Area [custom]

Display Mode

Dot Size [y]

Dot Size [x]

Background Color

Dot Pitch [x]

Dot Pitch [y]

Display Type

Interface

Viewing Area [y]

Viewing Area [z]

Controller Type

Dot Size [z]

Background Color

Viewing Area [x]

Dot Size [custom]

Graphics Color

Newhaven Display Intl

NHD-C12864CR-FSW-GBW

128

LED - White

Blue

40 mm

65.5 mm

Transflective

0.51 mm

0.42 mm

Gray

0.46 mm

0.56 mm

STN - Super-Twisted Nematic

Parallel/Serial

Newhaven Display Intl

NHD-C12864B2Z-RN-FBW

128

Without Backlight

Black (Gray - Inverted)

Reflective

0.27 mm

Gray

0.31 mm

FSTN - Film Super-Twisted Nematic

Parallel

44 mm

24 mm

ST-7565R

0.27 mm

Newhaven Display Intl

NHD-C12864WO-B1TMI#-M

128

LED - White

Blue, White

Transmissive

0.47 mm

Blue

0.5 mm

STN - Super-Twisted Nematic

Parallel/Serial

36.5 mm

ST7565P-G

White

69 mm

Newhaven Display Intl

NHD-C12864MR-NSW-BTW

128

LED - White

Blue, White

Transmissive

0.39 mm

Blue

0.43 mm

STN - Super-Twisted Nematic

Parallel/Serial

White

Newhaven Display Intl

NHD-C12864WO-B1TTI#-M

128

LED - White

White

Transmissive

0.47 mm

Black

0.5 mm

FSTN - Film Super-Twisted Nematic

Parallel/Serial

36.5 mm

ST7565P-G

White - Inverted

69 mm

Newhaven Display Intl

NHD-C12864AZ-FSY-HT

Newhaven Display Intl

NHD-C12864AZ-FSY-YBW

128

Black

Transflective

Yellow (Black - Inverted)

0.52 mm

STN - Super-Twisted Nematic

SPI

38.8 mm

70.7 mm

0.48 mm

Newhaven Display Intl

NHD-C12864WO-B1TGH#-M

128

LED - White

Blue

Transflective

0.47 mm

Gray

0.5 mm

STN - Super-Twisted Nematic

Parallel/Serial

36.5 mm

ST7565P-G

69 mm

Newhaven Display Intl

NHD-C12864KGZ-FSW-GBW

128

LED - White

Blue

Transflective

Gray

0.37 mm

STN - Super-Twisted Nematic

Parallel, 8-Bit

49.53 mm

26.67 mm

ST7565R

0.35 mm

Newhaven Display Intl

NHD-C12864HZ-FN-FBW

128

Without Backlight

Black (Gray - Inverted)

Transflective

0.29 mm

0.23 mm

Gray

0.24 mm

0.3 mm

FSTN - Film Super-Twisted Nematic

Parallel, 8-Bit

22.2 mm

33.8 mm

Part	Dot Pixels [y]	Dot Pixels [x]	Backlight	Graphics Color	Viewing Area [custom]	Viewing Area [custom]	Display Mode	Dot Size [y]	Dot Size [x]	Background Color	Dot Pitch [x]	Dot Pitch [y]	Display Type	Interface	Viewing Area [y]	Viewing Area [z]	Controller Type	Dot Size [z]	Background Color	Viewing Area [x]	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]
Newhaven Display Intl NHD-C12864CR-FSW-GBW	64	128	LED - White	Blue	40 mm	65.5 mm	Transflective	0.51 mm	0.42 mm	Gray	0.46 mm	0.56 mm	STN - Super-Twisted Nematic	Parallel/Serial
Newhaven Display Intl NHD-C12864B2Z-RN-FBW	64	128	Without Backlight	Black (Gray - Inverted)			Reflective	0.27 mm		Gray	0.31 mm	0.31 mm	FSTN - Film Super-Twisted Nematic	Parallel	44 mm	24 mm	ST-7565R	0.27 mm
Newhaven Display Intl NHD-C12864WO-B1TMI#-M	64	128	LED - White	Blue, White			Transmissive	0.47 mm	0.47 mm	Blue	0.5 mm	0.5 mm	STN - Super-Twisted Nematic	Parallel/Serial	36.5 mm		ST7565P-G		White	69 mm
Newhaven Display Intl NHD-C12864MR-NSW-BTW	64	128	LED - White	Blue, White			Transmissive	0.39 mm	0.39 mm	Blue	0.43 mm	0.43 mm	STN - Super-Twisted Nematic	Parallel/Serial					White
Newhaven Display Intl NHD-C12864WO-B1TTI#-M	64	128	LED - White	White			Transmissive	0.47 mm	0.47 mm	Black	0.5 mm	0.5 mm	FSTN - Film Super-Twisted Nematic	Parallel/Serial	36.5 mm		ST7565P-G		White - Inverted	69 mm
Newhaven Display Intl NHD-C12864AZ-FSY-HT
Newhaven Display Intl NHD-C12864AZ-FSY-YBW	64	128		Black			Transflective			Yellow (Black - Inverted)	0.52 mm	0.52 mm	STN - Super-Twisted Nematic	SPI	38.8 mm					70.7 mm	0.48 mm	0.48 mm
Newhaven Display Intl NHD-C12864WO-B1TGH#-M	64	128	LED - White	Blue			Transflective	0.47 mm	0.47 mm	Gray	0.5 mm	0.5 mm	STN - Super-Twisted Nematic	Parallel/Serial	36.5 mm		ST7565P-G			69 mm
Newhaven Display Intl NHD-C12864KGZ-FSW-GBW	64	128	LED - White	Blue			Transflective			Gray	0.37 mm	0.37 mm	STN - Super-Twisted Nematic	Parallel, 8-Bit	49.53 mm	26.67 mm	ST7565R						0.35 mm	0.35 mm
Newhaven Display Intl NHD-C12864HZ-FN-FBW	64	128	Without Backlight	Black (Gray - Inverted)			Transflective	0.29 mm	0.23 mm	Gray	0.24 mm	0.3 mm	FSTN - Film Super-Twisted Nematic	Parallel, 8-Bit	22.2 mm					33.8 mm
