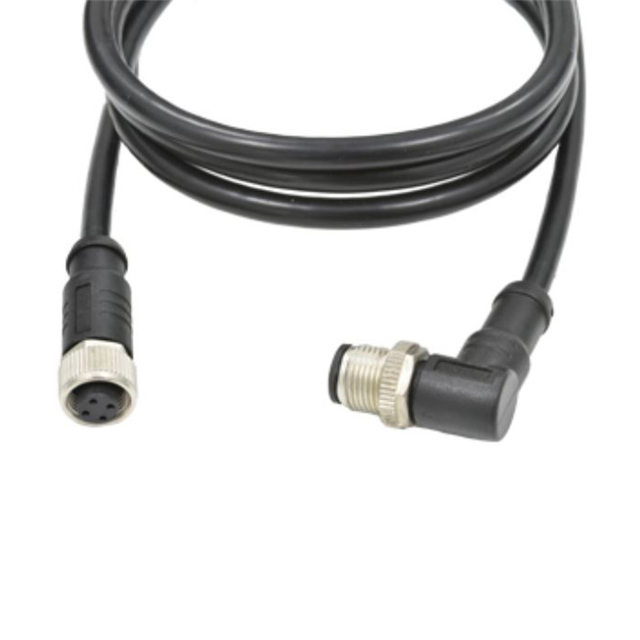

M12A04FL-12AMR-SDA05

Active

Amphenol LTW

CABLE: FOR SENSORS/AUTOMATION; PIN: 4; WITH METAL NUT; PLUG; 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A04FL-12AMR-SDA05

Active

Amphenol LTW

CABLE: FOR SENSORS/AUTOMATION; PIN: 4; WITH METAL NUT; PLUG; 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A04FL-12AMR-SDA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

M12A04FL Series

Part	1st Connector Gender	Ingress Protection	2nd Connector Shell Size - Insert	Length [x]	Length [x]	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	Assembly Configuration	1st Connector Mounting Type	2nd Connector Gender	1st Connector Type	Cable Material	2nd Connector Mounting Type	Cable Type	Usage	1st Connector Shell Size - Insert	Shielding	2nd Connector Type	1st Connector Orientation	Color	1st Connector Number of Positions	1st Connector Number of Positions Loaded
Amphenol LTW M12A04FL-12AMR-SBA05	Male Pins	IP68 IP69K	M12	1.64 ft	500 mm	4	All	Standard	Free Hanging (In-Line)	Female Sockets	Receptacle Right Angle	Polyurethane (PUR)	Free Hanging (In-Line)	Round	Industrial Environments	M12	Unshielded	Plug	A	Black	4	All
Amphenol LTW M12A04FL-12AMR-SDA05	Male Pins	IP68 IP69K	M12	1.64 ft	500 mm	4	All	Standard	Free Hanging (In-Line)	Female Sockets	Receptacle Right Angle	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Industrial Environments	M12	Unshielded	Plug	A	Black	4	All
Amphenol LTW M12A04FL-12AFR-SBA05	Female Sockets	IP68 IP69K	M12	1.64 ft	500 mm	4	All	Standard	Free Hanging (In-Line)	Female Sockets	Plug Right Angle	Polyurethane (PUR)	Free Hanging (In-Line)	Round	Industrial Environments	M12	Unshielded	Plug	A	Black	4	All
Amphenol LTW M12A04FL-12AFL-SBA05	Female Sockets	IP68 IP69K	M12	1.64 ft	500 mm	4	All	Standard	Free Hanging (In-Line)	Female Sockets	Plug	Polyurethane (PUR)	Free Hanging (In-Line)	Round	Industrial Environments	M12	Unshielded	Plug	A	Black	4	All
Amphenol LTW M12A04FL-12AFR-SD001	Female Sockets	IP68 IP69K	M12	3.28 ft	1 m	4	All	Standard	Free Hanging (In-Line)	Female Sockets	Plug Right Angle	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Industrial Environments	M12	Unshielded	Plug	A	Black	4	All
Amphenol LTW M12A04FL-12AFL-SB001	Female Sockets	IP68 IP69K	M12	3.28 ft	1 m	4	All	Standard	Free Hanging (In-Line)	Female Sockets	Plug	Polyurethane (PUR)	Free Hanging (In-Line)	Round	Industrial Environments	M12	Unshielded	Plug	A	Black	4	All
Amphenol LTW M12A04FL-12AFL-SDA05	Female Sockets	IP68 IP69K	M12	1.64 ft	500 mm	4	All	Standard	Free Hanging (In-Line)	Female Sockets	Plug	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Industrial Environments	M12	Unshielded	Plug	A	Black	4	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.08
		10	$ 6.38
		25	$ 6.01
		50	$ 5.85
		100	$ 5.70
		250	$ 5.42
TME	N/A	1	$ 17.70
		10	$ 14.94
		20	$ 14.26
		50	$ 13.38
		100	$ 13.18

Description

General part information

M12A04FL Series

Cable Assembly 1.64' (500.00mm)
