20020012-G081B01LF

Active

AMPHENOL ANYTEK

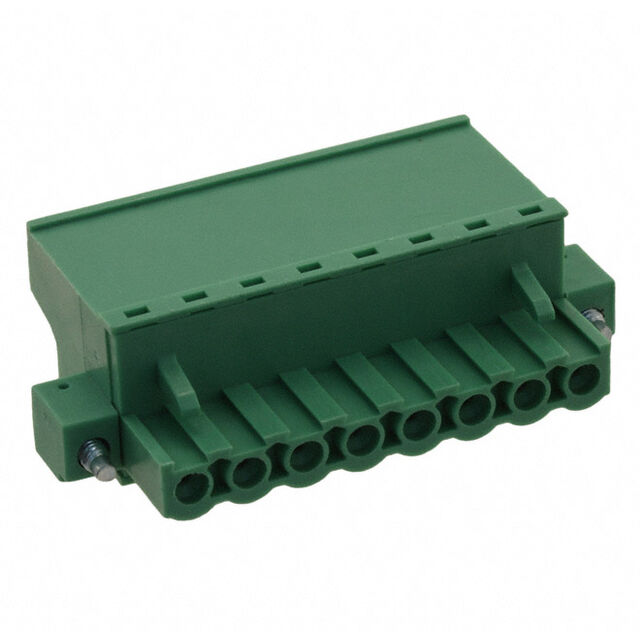

PLUGGABLE TERMINAL BLOCK, 5 MM, 8 POSITIONS, 28 AWG, 16 AWG, 2.5 MM², SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

20020012-G081B01LF

Active

AMPHENOL ANYTEK

PLUGGABLE TERMINAL BLOCK, 5 MM, 8 POSITIONS, 28 AWG, 16 AWG, 2.5 MM², SCREW

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20020012-G081B01LF	20020012 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin	Thermoplastic Resin
Insulation Height	1.083 in	1.083 in
Insulation Height	27.51 mm	27.51 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	8	4 - 10
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Positions Per Level	8	3 - 10
Screw Size	M2.5	M2.5
Termination Style	Screw - Pressure Clip	Screw - Pressure Clip
Torque - Screw	0.4 Nm	0.4 Nm
Torque - Screw	3.5 Lb-In	3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	1 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²	1 mm²
Wire Strip Length [Max]	7 mm	7 mm
Wire Strip Length [Min]	6 mm	6 mm

20020012 Series

TERM BLOCK PLUG 3POS STR 5.08MM

Part	Material Flammability Rating	Insulation Height	Insulation Height	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Mating Finish	Contact Material	Housing Material	Screw Size	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Pitch [x]	Pitch [x]	Type	Voltage - UL	Torque - Screw	Torque - Screw	Color	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Termination Style	Number of Levels	Features	Positions Per Level	Number of Positions	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
AMPHENOL ANYTEK 20020012-H031B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	3
AMPHENOL ANYTEK 20020012-G081B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	8	8
AMPHENOL ANYTEK 20020012-G041B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5			12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	4	4	1 mm˛	2.5 mm˛
AMPHENOL ANYTEK 20020012-G101B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5			12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	10	10	1 mm˛	2.5 mm˛
AMPHENOL ANYTEK 20020012-H061B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	6	6
AMPHENOL ANYTEK 20020012-G031B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	3
AMPHENOL ANYTEK 20020012-H101B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5			12 AWG	22 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	10	10	1 mm˛	2.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.20
		10	$ 3.69
		45	$ 3.00
		90	$ 2.76
		135	$ 2.64
		270	$ 2.47
		540	$ 2.33
		1035	$ 2.23
Newark	Each	1000	$ 2.99

Description

General part information

20020012 Series

8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
