20020012-G031B01LF

Active

AMPHENOL ANYTEK

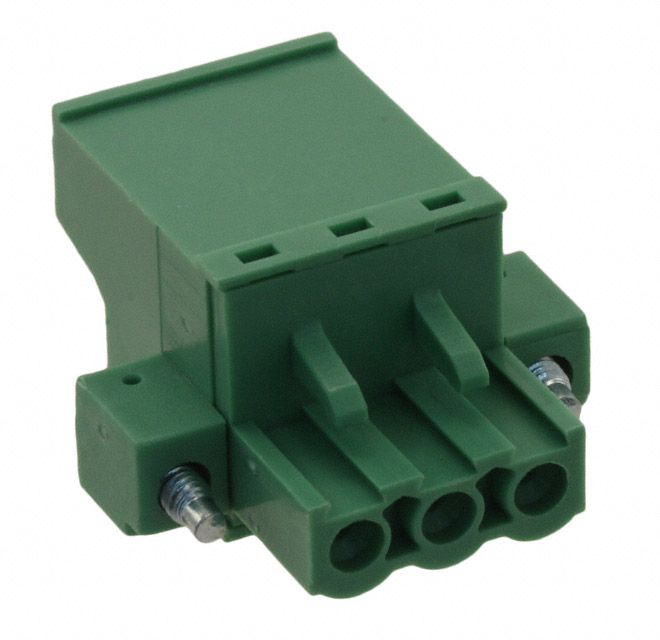

TERM BLOCK PLUG 3POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

20020012-G031B01LF

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 3POS 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.34
		10	$ 1.68
		25	$ 1.46
		50	$ 1.32
		110	$ 1.20
		330	$ 1.06
		550	$ 1.01
		1100	$ 0.95
		5060	$ 0.87

Description

General part information

20020012 Series

3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20020012-G031B01LF	20020012 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin	Thermoplastic Resin
Insulation Height	1.083 in	1.083 in
Insulation Height	27.51 mm	27.51 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	4 - 10
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Positions Per Level	3	3 - 10
Screw Size	M2.5	M2.5
Termination Style	Screw - Pressure Clip	Screw - Pressure Clip
Torque - Screw	0.4 Nm	0.4 Nm
Torque - Screw	3.5 Lb-In	3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	1 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²	1 mm²
Wire Strip Length [Max]	7 mm	7 mm
Wire Strip Length [Min]	6 mm	6 mm

20020012 Series

TERM BLOCK PLUG 3POS STR 5.08MM

Part	Material Flammability Rating	Insulation Height	Insulation Height	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Mating Finish	Contact Material	Housing Material	Screw Size	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Pitch [x]	Pitch [x]	Type	Voltage - UL	Torque - Screw	Torque - Screw	Color	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Termination Style	Number of Levels	Features	Positions Per Level	Number of Positions	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
AMPHENOL ANYTEK 20020012-H031B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	3
AMPHENOL ANYTEK 20020012-G081B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	8	8
AMPHENOL ANYTEK 20020012-G041B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5			12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	4	4	1 mm˛	2.5 mm˛
AMPHENOL ANYTEK 20020012-G101B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5			12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	10	10	1 mm˛	2.5 mm˛
AMPHENOL ANYTEK 20020012-H061B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	6	6
AMPHENOL ANYTEK 20020012-G031B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5	2.5 mm²	1 mm²	12 AWG	22 AWG	Free Hanging (In-Line)	0.197 in	5 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	3
AMPHENOL ANYTEK 20020012-H101B01LF	UL94 V-0	1.083 in	27.51 mm	7 mm	6 mm	Tin	Copper Alloy	Thermoplastic Resin	M2.5			12 AWG	22 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	Plug, Female Sockets	300 V	0.4 Nm	3.5 Lb-In	Green	-40 °C	115 °C	10 A	Screw - Pressure Clip	1	Mating Flange, Retention Latches (Non-Wire Side)	10	10	1 mm˛	2.5 mm˛
