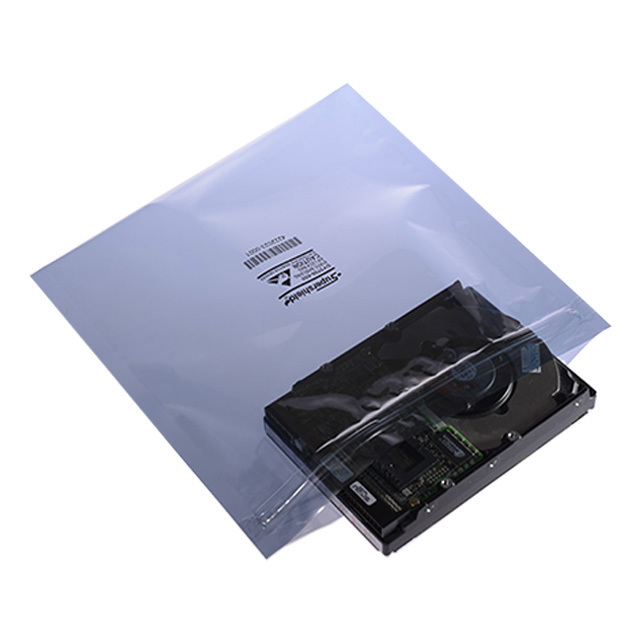

DY3700-628-ZB-18X24IN-H128

Active

DOU YEE ENTERPRISES

BAG STATIC SHIELD MTL IN 18"X24"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DY3700-628-ZB-18X24IN-H128

Active

DOU YEE ENTERPRISES

BAG STATIC SHIELD MTL IN 18"X24"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	3	$ 96.25
		6	$ 74.30

Description

General part information

DY3700 Series

Static Shielding Bag <15nJ Energy Shielding 18" (457.2mm) X 24" (609.6mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DY3700-628-ZB-18X24IN-H128	DY3700 Series

Closure System	Zip Lock	Zip Lock
Length - Inside	-	101.6 - 457.2 mm
Length - Inside	-	4 - 8 in
Length - Inside	-	76.2 mm
Length - Inside	-	3 in
Length - Inside [x]	609.6 mm	254 - 609.6 mm
Length - Inside [x]	24 in	10 - 24 in
Metal Layer	In	In
Static Discharge Shielding	15 nJ	15 nJ
Tensile Strength	5000 psi	5000 psi
Thickness	71.12 microns	71.12 microns
Thickness	0.0028 in	0.0028 in
Type	Static Shielding Bag	Static Shielding Bag
Width - Inside	-	152.4 - 381 mm
Width - Inside	-	101.6 - 127 mm
Width - Inside	-	4 - 5 in
Width - Inside	-	6 - 15 in
Width - Inside [y]	457.2 mm	50.8 - 457.2 mm
Width - Inside [y]	18 in	2 - 18 in

DY3700 Series

BAG STATIC SHIELD MTL IN 8"X8"

Part	Type	Metal Layer	Closure System	Tensile Strength	Length - Inside	Length - Inside	Static Discharge Shielding	Width - Inside [y]	Width - Inside [y]	Thickness	Thickness	Length - Inside [x]	Length - Inside [x]	Width - Inside	Width - Inside [x]	Width - Inside [x]	Width - Inside	Length - Inside [custom]	Length - Inside [custom]
DOU YEE ENTERPRISES DY3700-628-ZB-8X8IN0-H128	Static Shielding Bag	In	Zip Lock	5000 psi	203.2 mm	8 in	15 nJ	203.2 mm	8 in	71.12 microns	0.0028 in
DOU YEE ENTERPRISES DY3700-628-ZB-10X12IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi			15 nJ		10 in	71.12 microns	0.0028 in	12 in	304.8 mm	254 mm
DOU YEE ENTERPRISES DY3700-628-ZB-4X6IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi	152.4 mm	6 in	15 nJ			71.12 microns	0.0028 in				101.6 mm	4 in
DOU YEE ENTERPRISES DY3700-628-ZB-8X10IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi			15 nJ	203.2 mm	8 in	71.12 microns	0.0028 in	10 in	254 mm
DOU YEE ENTERPRISES DY3700-628-ZB-6X10IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi			15 nJ			71.12 microns	0.0028 in	10 in	254 mm	152.4 mm			6 in
DOU YEE ENTERPRISES DY3700-628-ZB-2X3IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi			15 nJ	50.8 mm	2 in	71.12 microns	0.0028 in							76.2 mm	3 in
DOU YEE ENTERPRISES DY3700-628-ZB-4X4IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi	101.6 mm	4 in	15 nJ			71.12 microns	0.0028 in				101.6 mm	4 in
DOU YEE ENTERPRISES DY3700-628-ZB-18X24IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi			15 nJ	457.2 mm	18 in	71.12 microns	0.0028 in	24 in	609.6 mm
DOU YEE ENTERPRISES DY3700-628-ZB-12X18IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi	457.2 mm		15 nJ	304.8 mm	12 in	71.12 microns	0.0028 in	18 in
DOU YEE ENTERPRISES DY3700-628-ZB-15X18IN-H128	Static Shielding Bag	In	Zip Lock	5000 psi	457.2 mm		15 nJ			71.12 microns	0.0028 in	18 in		381 mm			15 in
