C4AEOBW5300A3MJ

Active

KEMET

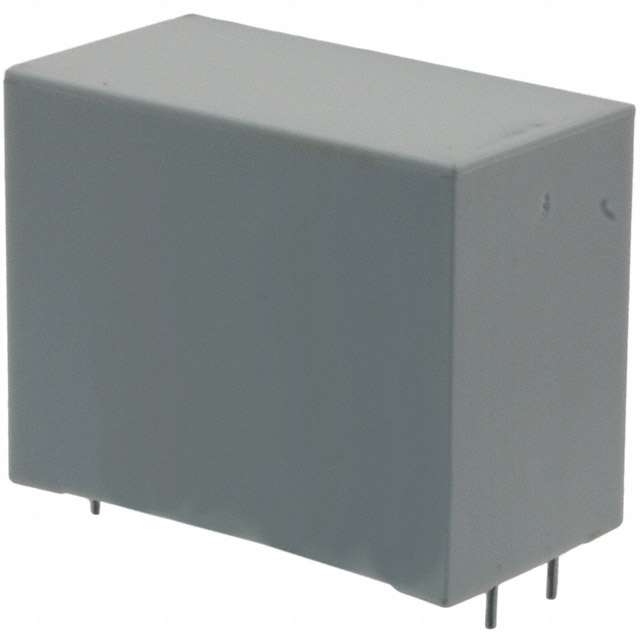

CAP FILM 30UF 5% 900VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC4AEOBW5300A3MJ Spec Power Film Capacitors Catalog +1

C4AEOBW5300A3MJ

Active

KEMET

CAP FILM 30UF 5% 900VDC RADIAL

Deep-Dive with AI

DocumentsC4AEOBW5300A3MJ Spec Power Film Capacitors Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AEOBW5300A3MJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	30 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.2 mOhm
Height - Seated (Max) [Max] [z]	45.3 mm
Height - Seated (Max) [Max] [z]	1.783 in
Lead Spacing	52.5 mm
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 4 Leads
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	1.181 in
Size / Dimension [y]	30 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	900 VDC

C4AEOB Series

Part	ESR (Equivalent Series Resistance)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Capacitance	Tolerance	Applications	Lead Spacing	Lead Spacing	Mounting Type	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case
KEMET C4AEOBU4800A12J	6.6 mOhms	PC Pins	85 °C	-40 °C	1.24 in	22 mm	0.866 in	31.5 mm	900 VDC	8 µF	5 %	DC Filtering DC Link High Frequency Switching	27.5 mm	1.083 in	Through Hole	Metallized Polypropylene (PP)	1.465 in	37.2 mm	Radial
KEMET C4AEOBW5400H3NJ		PC Pins	105 ░C	-40 °C	2.264 in	30 mm	1.181 in	57.5 mm	900 VDC	40 µF	5 %	DC Filtering DC Link High Frequency Switching	52.5 mm	2.067 in	Through Hole	Metallized Polypropylene (PP)			Radial
KEMET C4AEOBW5200A3LJ	3.9 mOhms	PC Pins	85 °C	-40 °C	1.654 in	30 mm	1.181 in	42 mm	900 VDC	20 µF	5 %	DC Filtering DC Link High Frequency Switching	37.5 mm	1.476 in	Through Hole	Metallized Polypropylene (PP)	1.772 in	45 mm	Radial - 4 Leads
KEMET C4AEOBW5400A3NJ	3.3 mOhms	PC Pins	85 °C	-40 °C	2.264 in	35 mm	1.378 "	57.5 mm	900 VDC	40 µF	5 %	DC Filtering DC Link High Frequency Switching	52.5 mm	2.067 in	Through Hole	Metallized Polypropylene (PP)			Radial - 4 Leads
KEMET C4AEOBU4500A11J	9.1 mOhms	PC Pins	85 °C	-40 °C					900 VDC	5 µF	5 %	DC Filtering DC Link High Frequency Switching	27.5 mm	1.083 in	Through Hole	Metallized Polypropylene (PP)	1.15 in	29.2 mm	Radial
KEMET C4AEOBW5300A3MJ	4.2 mOhm	PC Pins	85 °C	-40 °C	2.264 in	30 mm	1.181 in	57.5 mm	900 VDC	30 µF	5 %	DC Filtering DC Link High Frequency Switching	52.5 mm	2.067 in	Through Hole	Metallized Polypropylene (PP)	1.783 in	45.3 mm	Radial - 4 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.75
		27	$ 14.18
		108	$ 11.34

Description

General part information

C4AEOB Series

30 µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads

Documents

Technical documentation and resources

C4AEOBW5300A3MJ Spec

Datasheet

Power Film Capacitors Catalog

Datasheet
