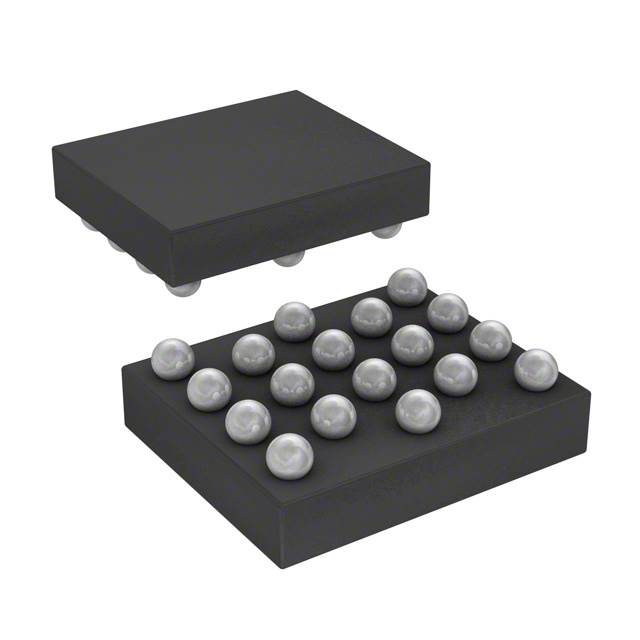

TS4956EIJT
ActiveSTMicroelectronics
IC AMP AB MONO 1W 18FLIPCHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS4956EIJT
ActiveSTMicroelectronics
IC AMP AB MONO 1W 18FLIPCHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TS4956EIJT | TS4956 Series |
|---|---|---|
| Features | Differential Inputs, Volume Control, Standby, Shutdown, I2C, Depop, Thermal Protection | Differential Inputs, Volume Control, Standby, Shutdown, I2C, Depop, Thermal Protection |
| Max Output Power x Channels @ Load [x] | 43 mW | 43 mW |
| Max Output Power x Channels @ Load [x] | 1 W | 1 W |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 1-Channel (Mono) with Mono and Stereo Headphones | 1-Channel (Mono) with Mono and Stereo Headphones |
| Package / Case | 18-UFBGA, FCBGA | 18-UFBGA, FCBGA |
| Supplier Device Package | 18-FlipChip | 18-FlipChip |
| Type | Class AB | Class AB |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TS4956 Series
IC AMP AB MONO 1W 18FLIPCHIP
| Part | Supplier Device Package | Mounting Type | Max Output Power x Channels @ Load [x] | Max Output Power x Channels @ Load [x] | Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TS4956EIJT | 18-FlipChip | Surface Mount | 43 mW | 1 W | Class AB | Depop, Differential Inputs, I2C, Shutdown, Standby, Thermal Protection, Volume Control | 85 °C | -40 °C | 2.7 V | 5.5 V | 18-UFBGA, FCBGA | 1-Channel (Mono) with Mono and Stereo Headphones |
STMicroelectronics TS4956EIKJT | 18-FlipChip | Surface Mount | 43 mW | 1 W | Class AB | Depop, Differential Inputs, I2C, Shutdown, Standby, Thermal Protection, Volume Control | 85 °C | -40 °C | 2.7 V | 5.5 V | 18-UFBGA, FCBGA | 1-Channel (Mono) with Mono and Stereo Headphones |
Description
General part information
TS4956 Series
Amplifier IC 1-Channel (Mono) with Mono and Stereo Headphones Class AB 18-FlipChip
