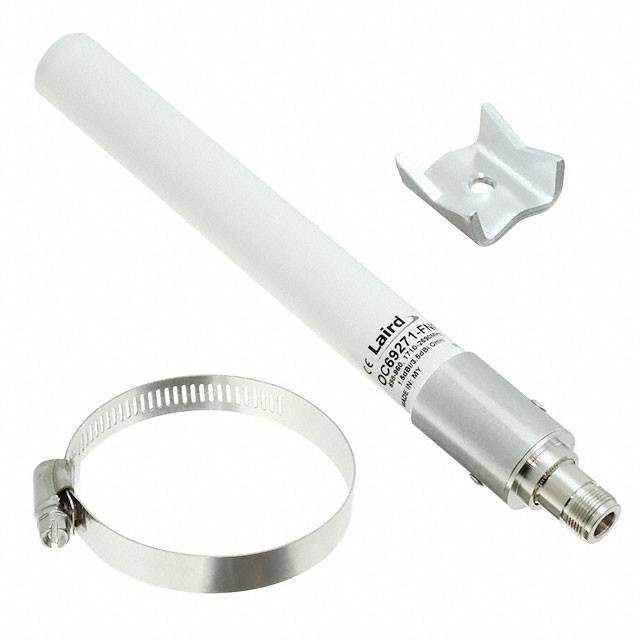

OC69271-FNF
ActiveTE Connectivity Raychem Cable Protection
OMNI,DBAND,FIXED,NF 698-960MHZ,1.5DBI
Deep-Dive with AI
Search across all available documentation for this part.
OC69271-FNF
ActiveTE Connectivity Raychem Cable Protection
OMNI,DBAND,FIXED,NF 698-960MHZ,1.5DBI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OC69271-FNF |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | 3G, GSM, WiMax™, LTE, 4G |
| Frequency (Center/Band) | 1.85 GHz, 2.3 GHz, 2.595 GHz, 829 MHz, 2.045 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 1.99 GHz, 2.69 GHz, 2.17 GHz, 2.5 GHz, 960 MHz |
| Frequency Range [Min] | 698 MHz, 1920 MHz, 1.71 GHz, 2.1 GHz, 2.5 GHz |
| Gain | 3.5 dBi, 1.5 dBic |
| Height (Max) [Max] | 9.764 in |
| Height (Max) [Max] | 248 mm |
| Mounting Type | Bracket Mount |
| Number of Bands [custom] | 5 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular, WiFi |
| Termination | N Type Female |
| VSWR | 2, 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 68.14 | |
| 10 | $ 64.74 | |||
| 25 | $ 63.03 | |||
| 100 | $ 58.35 | |||
Description
General part information
OC69271 Series
Baton/Stick Antenna, Multi Band, Cellular, External Mount, Pole/Mast/Bracket Mount, N-type, Omnidirectional, Single Port, OC Series
