627-5W5-624-3TC

Active

EDAC Inc.

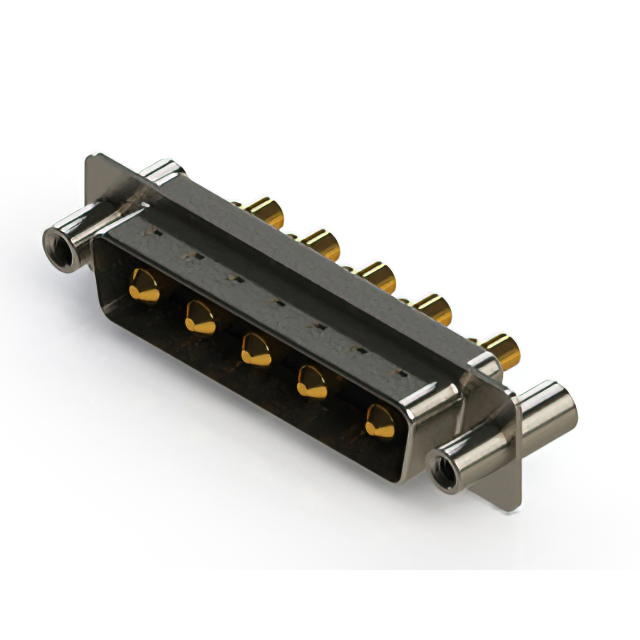

CONN D-SUB PLG 5POS PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-5W5-624-3TC

Active

EDAC Inc.

CONN D-SUB PLG 5POS PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-5W5-624-3TC

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	30 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature [custom]	M3
Flange Feature [custom]	M3
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

627-5W5 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions [custom]	Contact Material	Color	Contact Type	Mounting Type	Flange Feature	Current Rating (Amps)	Number of Rows	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Finish	Features	Shell Size, Connector Layout	Shell Size, Connector Layout	Voltage Rating	Material Flammability Rating	Contact Finish Thickness	Termination	Shell Material, Finish	Flange Feature [custom]	Flange Feature [custom]	Number of Positions
EDAC Inc. 627-5W5-622-2T2	0.76 Ám	30 Áin	Male Pins Plug	5	Copper Alloy	Black	Power	Free Hanging (In-Line)	4-40 Board Side	20 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0
EDAC Inc. 627-5W5-224-1ND			Male Pins Plug	5	Copper Alloy	Black	Power	Through Hole	Board Side (M3)	10 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Board Lock Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0	Flash	Solder	Nickel Plated Steel
EDAC Inc. 627-5W5-624-3TC	0.76 Ám	30 Áin	Male Pins Plug	5	Copper Alloy	Black	Power			30 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0		Solder		M3	M3
EDAC Inc. 627-5W5-624-3NB	0.76 Ám	30 Áin	Male Pins Plug	5	Copper Alloy	Black	Power		Board Side (M3)	30 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0		Solder	Nickel Plated Steel
EDAC Inc. 627-5W5-224-4N4			Male Pins Plug	5	Copper Alloy	Black	Power		4-40	40 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0	Flash	Solder	Nickel Plated Steel
EDAC Inc. 627-5W5-224-7TC			Male Pins Plug		Copper Alloy	Black	Coax				1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0	Flash	Solder		M3	M3	5
EDAC Inc. 627-5W5-224-5N6			Male Pins Plug		Copper Alloy	Black	Coax	Panel Mount Through Hole	4-40		1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Board Lock Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0	Flash	Solder	Nickel Plated Steel			5
EDAC Inc. 627-5W5-622-3T2	0.76 Ám	30 Áin	Male Pins Plug	5	Copper Alloy	Black	Power	Free Hanging (In-Line)	4-40 Board Side	30 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0
EDAC Inc. 627-5W5-224-1N1			Male Pins Plug	5	Copper Alloy	Black	Power	Through Hole	Housing/Shell (Unthreaded)	10 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0	Flash	Solder	Nickel Plated Steel
EDAC Inc. 627-5W5-622-4N1	0.76 Ám	30 Áin	Male Pins Plug	5	Copper Alloy	Black	Power	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	40 A	1	Combo D-Sub	-55 °C	125 °C	Polyester Thermoplastic	Gold	Grounding Indents Shielded	5W5	3	125 VDC	UL94 V-0			Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 17.81

Description

General part information

627-5W5 Series

5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
