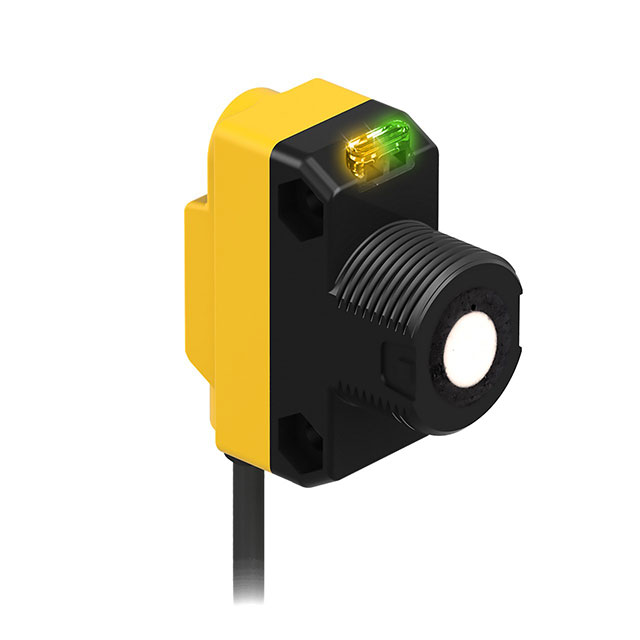

QS18UNA

Active

BANNER ENGINEERING

ULTRASONIC SENSOR, WORLD-BEAM QS18U SERIES, TEACH MODE, 500 MM, NPN, 12 TO 30 VDC, CABLE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

ULTRASONIC SENSOR, WORLD-BEAM QS18U SERIES, TEACH MODE, 500 MM, NPN, 12 TO 30 VDC, CABLE

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Ingress Protection	Cable Length	Cable Length	Adjustment Type	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Frequency
BANNER ENGINEERING QS18UNA	15 ms	-20 C	60 °C	NPN	LED	12 V	30 VDC	Cable	IP67 NEMA 6P	78.74 in	2 m	Adjustable	500 mm	19.69 in	1.97 "	5 cm
BANNER ENGINEERING QS18UPAEQ8		-20 C	60 °C														30 VDC	12 V	300 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 160.00
Newark	Each	1	$ 157.63

General part information

Optical Sensor 1.97" ~ 19.69" (50mm ~ 500mm) NPN
