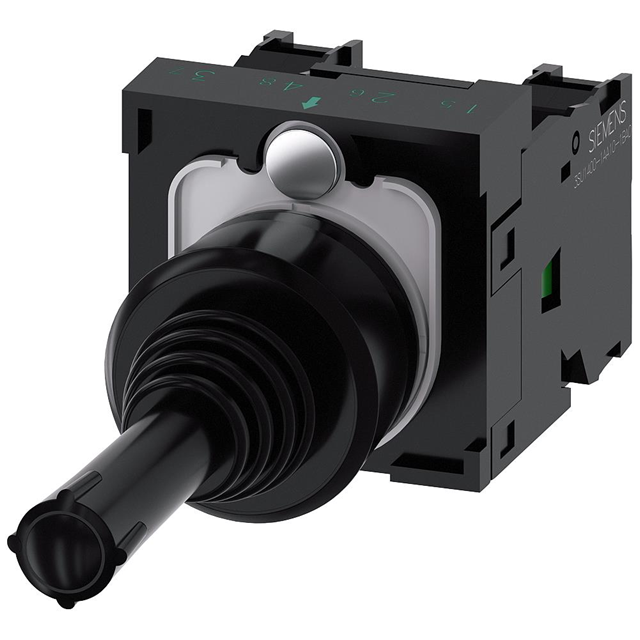

Specification	3SU11007AC101NA0

Actuator Type	Joystick
Contact Material	Silver Alloy
Current Rating	10 A
Electrical Life (Cycles)	10000000
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Output	Digital (Mechanical Switch)
Switch Function	360° Directional
Termination Style	Screw Terminal
Type	Joystick, 2 - Axis
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1100 Series

Part	Color - Actuator/Cap	Mounting Type	Actuator Type	Operating Temperature (Max)	Operating Temperature (Min)	Panel Cutout Diameter	Panel Cutout Shape	Switch Function	Type	Circuit	Ingress Protection IP Rating	Ingress Protection Description	Termination Style	Voltage Rating - AC	Current Rating	Voltage Rating - DC	Electrical Life (Cycles)	Mechanical Life (Cycles)	Contact Material	Output	Number of Positions	Contact Finish	Angle of Throw	Removable Positions	Depth Behind Flange	Reset Operation	Illumination	Approval Agency
Siemens 3SU11000AB601FA0	White	Front Panel Mount	Button Round	70 °C	-25 °C	22.3 mm	Circular	Off-Mom On-Mom	Standard	DPST-NO/NC	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V	10000000	10000000 Cycles
Siemens 3SU11007BA101NA0		Panel Mount	Joystick	70 °C	-25 °C			360° Directional	2 - Axis Joystick		IP65 IP67	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V	10000000	100000 Cycles	Silver Alloy	Digital (Mechanical Switch)
Siemens 3SU11007AF101QA0		Panel Mount	Joystick	70 °C	-25 °C			360° Directional	2 - Axis Joystick		IP65 IP67	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V	10000000	500000 Cycles	Silver Alloy	Digital (Mechanical Switch)
Siemens 3SU11000AB501FA0	Blue	Front Panel Mount	Button Round	70 °C	-25 °C	22.3 mm	Circular	Off-Mom On-Mom	Standard	DPST-NO/NC	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V	10000000	10000000 Cycles
Siemens 3SU11007BB101NA0		Panel Mount	Joystick	70 °C	-25 °C			360° Directional	2 - Axis Joystick		IP65 IP67	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V	10000000	100000 Cycles	Silver Alloy	Digital (Mechanical Switch)
Siemens 3SU11004BF111FA0		Panel Mount	Flat Key	70 °C	-25 °C	22.3 mm	Circular	Off-On On-Off		DPST-NO/NC			Screw Terminal	500 V	10 A	500 V	10000000	1000000 Cycles	Silver Alloy		2	Silver	90 °	All	49.4 mm
Siemens 3SU11001HB201PG0		Front Panel Mount		70 °C	-25 °C	22.3 mm	Circular	On-Off		DPST-NC	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V										Twist
Siemens 3SU11002BL601LA0		Panel Mount		70 °C	-25 °C	22.3 mm	Circular	Off-On On-Off	Standard	4PST-2NO/2NC	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V	10000000	1000000 Cycles			3				71.7 mm		Non-Illuminated	CCC CE CSA EAC UL
Siemens 3SU11004BF113FA0		Panel Mount	Flat Key	70 °C	-25 °C	22.3 mm	Circular	Off-On On-Off		DPST-NO/NC			Spring Terminal	500 V	10 A	500 V	10000000	1000000 Cycles	Silver Alloy		2	Silver	90 °	All	49.4 mm
Siemens 3SU11001HB201FG0		Front Panel Mount		70 °C	-25 °C	22.3 mm	Circular	Off-On On-Off		DPST-NO/NC	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Screw Terminal	500 V	10 A	500 V										Twist
