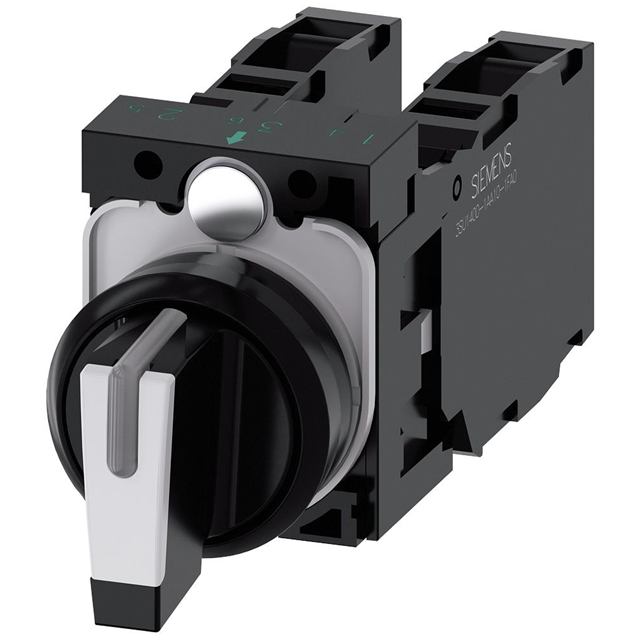

3SU11002BL601LA0

Active

Siemens

SWITCH SELECT 3POS 4PST 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

3SU11002BL601LA0

Active

Siemens

SWITCH SELECT 3POS 4PST 10A 500V

Deep-Dive with AI

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SU11002BL601LA0

Approval Agency	EAC, CCC, UL, CSA, CE
Circuit	4PST-2NO/2NC
Current Rating (Amps)	10 A
Depth Behind Flange [z]	71.7 mm
Electrical Life	10000000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1100 Series

Part	Circuit	Voltage Rating - AC	Actuator Type	Mounting Type	Termination Style	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Type	Color - Actuator/Cap	Ingress Protection	Switch Function	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Voltage Rating - DC	Contact Material	Output	Depth Behind Flange [z]	Key Removable Positions	Number of Positions	Contact Finish	Angle of Throw	Contact Timing	Approval Agency	Illumination	Reset Operation	Depth Behind Flange
Siemens 3SU11000AB601FA0	DPST-NO/NC	500 V	Button Round	Panel Mount Front	Screw Terminal	10 A	22.3 mm	Standard	White	IP66 IP67 IP69K	Off-Mom On-Mom	10000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V
Siemens 3SU11007BA101NA0		500 V	Joystick		Screw Terminal	10 A		Joystick 2 - Axis		IP65 IP67 - Dust Tight Water Resistant Waterproof	360° Directional	100000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V	Silver Alloy	Digital (Mechanical Switch)
Siemens 3SU11000AB601BA0	SPST-NO	500 V	Button Round	Panel Mount Front	Screw Terminal	10 A	22.3 mm	Standard	White	IP66 IP67 IP69K	Off-Mom	10000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V
Siemens 3SU11000AB501FA0	DPST-NO/NC	500 V	Button Round	Panel Mount Front	Screw Terminal	10 A	22.3 mm	Standard	Blue	IP66 IP67 IP69K	Off-Mom On-Mom	10000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V
Siemens 3SU11004BF111FA0	DPST-NO/NC	500 V	Flat Key		Screw Terminal	10 A	22.3 mm				Off-On On-Off	1000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V	Silver Alloy		49.4 mm	All	2	Silver	90 °	Not Specified
Siemens 3SU11002BL601LA0	4PST-2NO/2NC	500 V			Screw Terminal	10 A	22.3 mm	Standard		IP66 IP67 IP69K	Off-On On-Off	1000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V			71.7 mm						CCC CE CSA EAC UL	Non-Illuminated
Siemens 3SU11002BL101NA0	4PST-2NO/2NC	500 V			Screw Terminal	10 A	22.3 mm	Standard		IP66 IP67 IP69K	Off-On On-Off	1000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V			71.7 mm						CCC CE CSA EAC UL	Non-Illuminated
Siemens 3SU11004BF113FA0	DPST-NO/NC	500 V	Flat Key		Spring Terminal	10 A	22.3 mm				Off-On On-Off	1000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V	Silver Alloy		49.4 mm	All	2	Silver	90 °	Not Specified
Siemens 3SU11001HB201FG0	DPST-NO/NC	500 V		Panel Mount Front	Screw Terminal	10 A	22.3 mm			IP66 IP67 IP69K	Off-On On-Off		70 °C	-25 °C		500 V											Twist
Siemens 3SU11005BF113FA0	DPST-NO/NC	500 V	Flat Key		Spring Terminal	10 A	22.3 mm				Off-On On-Off	1000000 Cycles	70 °C	-25 °C	10000000 Cycles	500 V	Silver Alloy			All	2	Silver	90 °	Not Specified				61 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.70
