SSF-LXH303ID

Active

Lumex Opto/Components Inc.

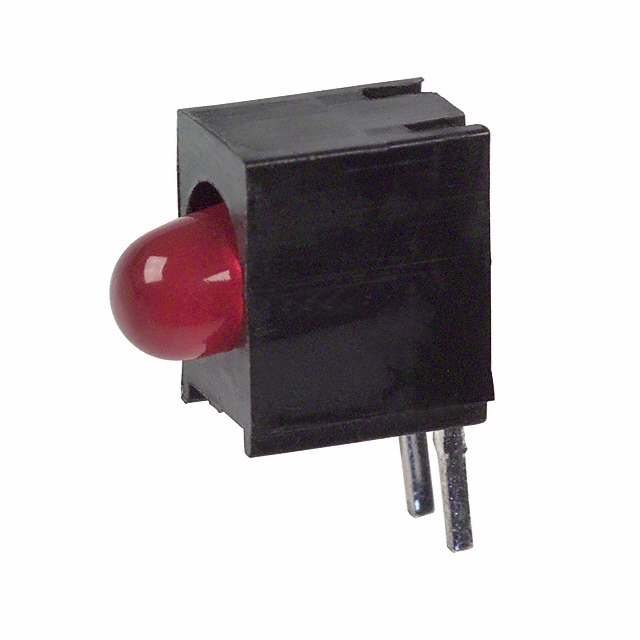

LED CBI 3MM RED RA PCMNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED CBI 3MM RED RA PCMNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED CBI 3MM GRN/RED RA

Part	Configuration	Mounting Type	Lens Style	Lens Size	Lens Size	Viewing Angle	Lens Type	Wavelength - Peak	Voltage Rating	Color	Millicandela Rating
Lumex Opto/Components Inc. SSF-LXH303IGW	Single	Through Hole, Right Angle	Round with Domed Top	3 mm	T-1	60 °	Diffused, White	565 nm, 635 nm	2 V, 2.2 V	Green, Red
Lumex Opto/Components Inc. SSF-LXH303OD	Single	Through Hole, Right Angle				60 °	Diffused, Tinted	620 nm	2 V		40 mcd
Lumex Opto/Components Inc. SSF-LXH303YD	Single	Through Hole, Right Angle				60 °	Diffused, Tinted	585 nm	2.1 V	Yellow	30 mcd
Lumex Opto/Components Inc. SSF-LXH303ID	Single	Through Hole, Right Angle	Round with Domed Top	3 mm	T-1	60 °	Diffused, Tinted	635 nm	2.1 V	Red	40 mcd
Lumex Opto/Components Inc. SSF-LXH303LID	Single	Through Hole, Right Angle	Round with Domed Top	3 mm	T-1	60 °	Diffused, Tinted	635 nm	2 V	Red	40 mcd
Lumex Opto/Components Inc. SSF-LXH303GD	Single	Through Hole, Right Angle	Round with Domed Top	3 mm	T-1	60 °	Diffused, Tinted	565 nm		Green	30 mcd
Lumex Opto/Components Inc. SSF-LXH303SGD	Single	Through Hole, Right Angle				60 °	Diffused, Tinted	565 nm		Green	50 mcd
Lumex Opto/Components Inc. SSF-LXH303LGD	Single	Through Hole, Right Angle	Round with Domed Top	3 mm	T-1	60 °	Diffused, Tinted	565 nm		Green	30 mcd
