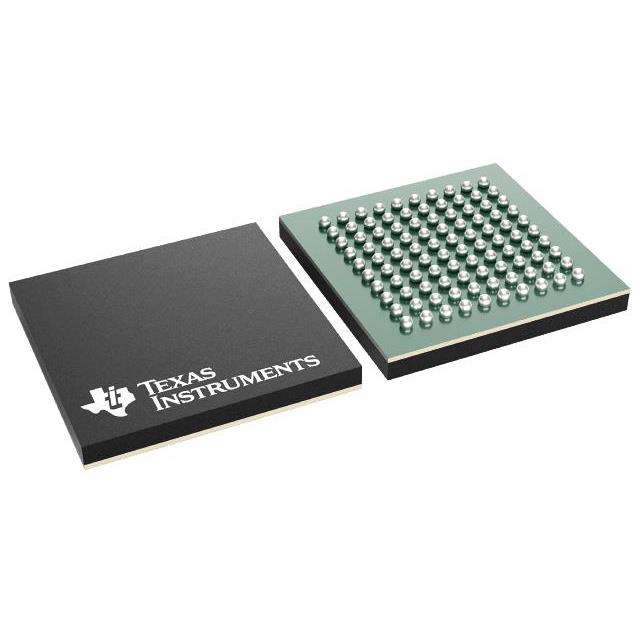

TMS320F2808GBAS

Active

Texas Instruments

C2000™ 32-BIT MCU WITH 100-MHZ, 128-KB FLASH, 12 PWM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C2000™ MISRA-C Policy +48

TMS320F2808GBAS

Active

Texas Instruments

C2000™ 32-BIT MCU WITH 100-MHZ, 128-KB FLASH, 12 PWM

Deep-Dive with AI

DocumentsDatasheet C2000™ MISRA-C Policy +48

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMS320F2808GBAS	TMS320F2808 Series

Connectivity	SPI, SCI, CANbus, UART/USART, I2C	SPI, SCI, CANbus, UART/USART, I2C
Core Processor	C28x	C28x
Core Size	32-Bit Single-Core	32-Bit Single-Core
Data Converters [custom]	16	16
Data Converters [custom]	12 b	12 b
Grade	-	Automotive
Mounting Type	Surface Mount	Surface Mount
Number of I/O	35	35
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal
Package / Case	100-LFBGA	100-LFBGA, 100-LQFP
Peripherals	POR, PWM, WDT	POR, PWM, WDT
Program Memory Type	FLASH	FLASH
Qualification	-	AEC-Q100
RAM Size	18K x 16	18K x 16
Speed	100 MHz	100 MHz
Supplier Device Package	100-NFBGA (10x10)	100-NFBGA (10x10), 100-LQFP (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	1.89 V	1.89 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V	1.71 V

TMS320F2808 Series

C2000™ 32-bit MCU with 100-MHz, 128-kb flash, 12 PWM

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Connectivity	Program Memory Type	Package / Case	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Core Processor	Oscillator Type	RAM Size	Number of I/O	Peripherals	Core Size	Supplier Device Package	Qualification	Grade
Texas Instruments TMS320F2808NMFA	Surface Mount	85 °C	-40 °C	100 MHz	CANbus, I2C, SCI, SPI, UART/USART	FLASH	100-LFBGA	16	12 b	1.89 V	1.71 V	C28x	Internal	18K x 16	35	POR, PWM, WDT	32-Bit Single-Core	100-NFBGA (10x10)
Texas Instruments TMS320F2808PZA	Surface Mount	85 °C	-40 °C	100 MHz	CANbus, I2C, SCI, SPI, UART/USART	FLASH	100-LQFP	16	12 b	1.89 V	1.71 V	C28x	Internal	18K x 16	35	POR, PWM, WDT	32-Bit Single-Core	100-LQFP (14x14)	AEC-Q100	Automotive
Texas Instruments TMS320F2808PZAR	Surface Mount	85 °C	-40 °C	100 MHz	CANbus, I2C, SCI, SPI, UART/USART	FLASH	100-LQFP	16	12 b	1.89 V	1.71 V	C28x	Internal	18K x 16	35	POR, PWM, WDT	32-Bit Single-Core	100-LQFP (14x14)	AEC-Q100	Automotive
Texas Instruments TMS320F2808GBAS	Surface Mount	125 °C	-40 °C	100 MHz	CANbus, I2C, SCI, SPI, UART/USART	FLASH	100-LFBGA	16	12 b	1.89 V	1.71 V	C28x	Internal	18K x 16	35	POR, PWM, WDT	32-Bit Single-Core	100-NFBGA (10x10)
Texas Instruments TMS320F2808GBAA	Surface Mount	85 °C	-40 °C	100 MHz	CANbus, I2C, SCI, SPI, UART/USART	FLASH	100-LFBGA	16	12 b	1.89 V	1.71 V	C28x	Internal	18K x 16	35	POR, PWM, WDT	32-Bit Single-Core	100-NFBGA (10x10)
Texas Instruments TMS320F2808NMFS	Surface Mount	125 °C	-40 °C	100 MHz	CANbus, I2C, SCI, SPI, UART/USART	FLASH	100-LFBGA	16	12 b	1.89 V	1.71 V	C28x	Internal	18K x 16	35	POR, PWM, WDT	32-Bit Single-Core	100-NFBGA (10x10)
Texas Instruments TMS320F2808PZS	Surface Mount	125 °C	-40 °C	100 MHz	CANbus, I2C, SCI, SPI, UART/USART	FLASH	100-LQFP	16	12 b	1.89 V	1.71 V	C28x	Internal	18K x 16	35	POR, PWM, WDT	32-Bit Single-Core	100-LQFP (14x14)	AEC-Q100	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	184	$ 18.10
Texas Instruments	JEDEC TRAY (5+1)	1	$ 19.57
		100	$ 17.10
		250	$ 13.18
		1000	$ 11.79

Description

General part information

TMS320F2808 Series

The TMS320F2809, TMS320F2809-Q1, TMS320F2808, TMS320F2808-Q1 TMS320F2806, TMS320F2802, TMS320F2801-Q1, TMS320F28015-Q1, TMS320F28016-Q1, TMS320C2802-Q1, and TMS320C2801 devices, members of the TMS320C28x DSP generation, are highly integrated, high-performance solutions for demanding control applications.

Throughout this document, TMS320F2809, TMS320F2809-Q1 TMS320F2808, TMS320F2808-Q1 TMS320F2806, TMS320F2802-Q1, TMS320F2801-Q1, TMS320C2802, TMS320C2801, TMS320F28015-Q1, and TMS320F28016-Q1 are abbreviated as F2809, F2808, F2806, F2802-Q1, F2801-Q1, C2802, C2801, F28015-Q1, and F28016-Q1, respectively. TMS320F28015-Q1 and TMS320F28016-Q1 are abbreviated as F2801x. Device Comparison (100-MHz Devices) and Device Comparison (60-MHz Devices) provide a summary of features for each device.

Documents

Technical documentation and resources

TMS320F2808GBAS

Deep-Dive with AI

TMS320F2808GBAS

Deep-Dive with AI

Technical Specifications

TMS320F2808 Series

Pricing

Description

TMS320F2808 Series

Documents

Datasheet

C2000™ MISRA-C Policy

TMS320C28x DSP CPU and Instruction Set (Rev. F)

TMS320x280x, 2801x, 2804x Inter-Integrated Circuit (I2C) Reference Guide (Rev. C)

TMS320x280x, 2801x, 2804x Enhanced Pulse Width Modulator (ePWM) Module RG (Rev. F)

TMS320x280x, 2801x, 2804x Serial Communications Interface (SCI) Reference Guide (Rev. B)

Programming TMS320x28xx and 28xxx Peripherals in C/C++ (Rev. E)

MSL Ratings and Reflow Profiles (Rev. A)

Microstepping Bipolar Drive of Two-Phase Hybrid Stepping Motor on F2808 DSP

Common Object File Format (COFF)

Migrating from TMS320x280x to TMS320x2833x or 2823x (Rev. B)

TMS320x280x, 2801x, 2804x DSP Boot ROM Reference Guide (Rev. C)

Migrating from TMS320x281x to TMS320x280x/2801x/2804x (Rev. A)

TMS320F280x, TMS320C280x, TMS320F2801x digital signal processors datasheet (Rev. P)

Using Enhanced Pulse Width Modulator (ePWM) Module for 0-100% Duty Cycle Control

Flash Programming Solutions for the TMS320F28xxx DSCs

Hardware Design Guidelines for TMS320F28xx and TMS320F28xxx DSCs (Rev. D)

Programming Examples for the TMS320x28xx eCAN (Rev. B)

TMS320x280x 2801x, 2804x Analog-to-Digital Converter(ADC) Module Reference Guide (Rev. D)

TMS320F280x DSC USB Connectivity Using TUSB3410 USB-to-UART Bridge Chip

Calculator for CAN Bit Timing Parameters

TMS320x280x, 2801x, 2804x Enhanced Quadrature Encoder Pulse (eQEP) RG (Rev. D)

Semiconductor and IC Package Thermal Metrics (Rev. D)

EEPROM Emulation for Gen 2 C2000 Real-Time MCUs (Rev. A)

Configuring Source of Multiple ePWM Trip-Zone Events

TMS320x280x, 2801x DSP Enhanced Controller Area Network (eCAN) User's Guide

Using PWM Output as a Digital-to-Analog Converter on a TMS320F280x (Rev. A)

Interfacing SD/MMC Cards With TMS320F28xxx DSCs

Using the eQEP Module in TMS320x280x as a Dedicated Capture

TMS320F280x, TMS320C280x, TMS320F2801x DSPs Silicon Errata (Rev. T)

Programming External Nonvolatile Memory Using SDFlash for TMS320C28x Devices

Online Stack Overflow Detection on the TMS320C28x DSP

Running an Application from Internal Flash Memory on the TMS320F28xxx DSP (Rev. L)

TMS320x280x, 2801x, 2804x System Control and Interrupts Reference Guide (Rev. H)

TMS320x280x, 2801x, 2804x Serial Peripheral Interface (SPI) Reference Guide

An Overview of Designing Analog Interface With TM320F28xx/28xxx DSCs (Rev. A)

Copying Compiler Sections from Flash to RAM on the TMS320F28xxx DSCs (Rev. A)

C2000™ Unique Device Number (Rev. B)

Custom Bootloader Options via One-Time Programmable (OTP) Memory

Calculating Useful Lifetimes of Embedded Processors (Rev. B)

TMS320F28xx and TMS320F28xxx DSP Power Reference Design (Rev. A)

TMS320F280x MicroStar BGA Discontinued and Redesigned

Designing a TMS320F280x Based Digitally Controlled DC-DC Switching Power Supply

Calculating FIT for a Mission Profile

C2000 Real-Time Control Peripheral Reference Guide (Rev. T)

Configuring the TMS320F280x DSP as an I2C Processor

TMS320x280x, 2801x, 2804x High Resolution PWM (HRPWM) Reference Guide (Rev. F)

TMS320280x and TMS320F2801x ADC Calibration (Rev. A)

SYS/BIOS (TI-RTOS Kernel) User's Guide (Rev. V)

TMS320x280x, 2801x, 2804x Enhanced Capture (ECAP) Module Reference Guide (Rev. B)
