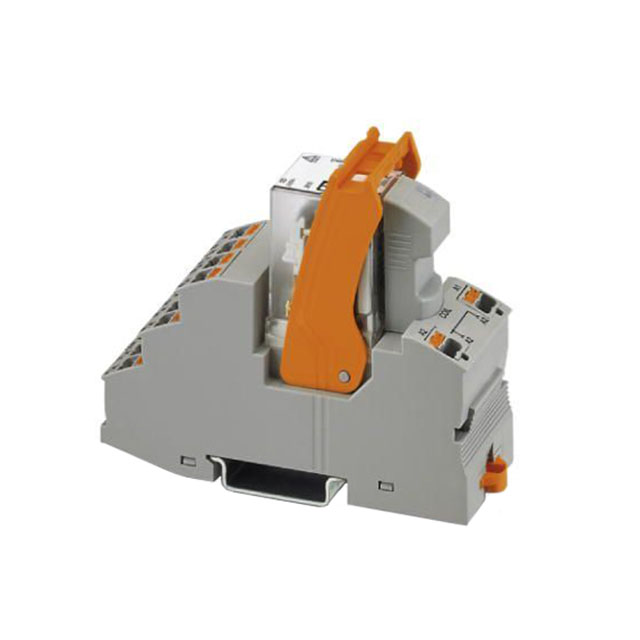

RELAY GEN PURPOSE 4PDT 5A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2909739
ActivePhoenix Contact
RELAY GEN PURPOSE 4PDT 5A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2909739 | 29097 Series |
|---|---|---|
| Approval Agency | ATEX, UL, IECEx, EAC, cULus | VDE, UL, EAC, cULus, DNV, ATEX, IECEx |
| Coil Current | 6.5 mA | 6.5 - 42 mA |
| Coil Resistance | 35.39 kOhms | 9.23 - 632 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 24 - 230 VAC |
| Contact Form | 4PDT (4 Form C) | DPDT (2 Form C), 4PDT (4 Form C), SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A | 5 - 8.5 A |
| Features | Lighted Indicator, Varistor, Socket Included | Socket Included, Test Button, Varistor, Mechanical Indicator, Lighted Indicator, Diode |
| Mounting Type | DIN Rail | DIN Rail, Socketable |
| Operate Time | 15 ms | 10 - 15 ms |
| Operating Temperature [Max] | 50 °C | 45 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 20 ms | 3 - 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Spring Terminal | Spring Terminal, Plug In, Screw Terminal |
29097 Series
RELAY GEN PURPOSE DPDT 8A 120V
| Part | Termination Style | Release Time | Coil Voltage | Contact Form | Coil Resistance | Mounting Type | Operate Time | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Rating (Current) | Relay Type | Switching Voltage | Coil Type | Coil Current | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2909775 | Spring Terminal | 20 ms | 120 VAC | DPDT (2 Form C) | 17.1 kOhms | DIN Rail | 10 ms | Silver Nickel (AgNi) | 45 °C | -40 °C | Socket Included, Test Button, Varistor | 8 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 7 mA | |
Phoenix Contact 2909744 | Plug In | 20 ms | 120 VAC | 4PDT (4 Form C) | 9.23 kOhms | Socketable | 15 ms | Silver Nickel (AgNi) | 55 °C | -40 °C | Lighted Indicator, Mechanical Indicator | 6 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 13 mA | cULus, EAC, UL, VDE |
Phoenix Contact 2909774 | Screw Terminal | 20 ms | 120 VAC | SPDT (1 Form C) | 17.14 kOhms | DIN Rail | 10 ms | Silver Nickel (AgNi) | 50 °C | -40 °C | Lighted Indicator, Socket Included, Varistor | 8.5 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 7 mA | DNV, EAC |
Phoenix Contact 2909740 | Spring Terminal | 20 ms | 120 VAC | 4PDT (4 Form C) | 9.23 kOhms | DIN Rail | 15 ms | Silver Nickel (AgNi) | 50 °C | -40 °C | Lighted Indicator, Socket Included, Varistor | 5 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 13 mA | ATEX, cULus, EAC, IECEx, UL |
Phoenix Contact 2909773 | Screw Terminal | 20 ms | 120 VAC | DPDT (2 Form C) | 17.14 kOhms | DIN Rail | 10 ms | Silver Nickel (AgNi) | 45 °C | -40 °C | Lighted Indicator, Socket Included, Varistor | 5 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 7 mA | |
Phoenix Contact 2909738 | Plug In | 3 ms | 24 VDC | 4PDT (4 Form C) | 632 Ohms | Socketable | 13 ms | Silver Nickel (AgNi) | 70 °C | -40 °C | Mechanical Indicator | 6 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 38 mA | cULus, EAC, UL, VDE |
Phoenix Contact 2909739 | Spring Terminal | 20 ms | 230 VAC | 4PDT (4 Form C) | 35.39 kOhms | DIN Rail | 15 ms | Silver Nickel (AgNi) | 50 °C | -40 °C | Lighted Indicator, Socket Included, Varistor | 5 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 6.5 mA | ATEX, cULus, EAC, IECEx, UL |
Phoenix Contact 2909741 | Spring Terminal | 14 ms | 24 VDC | 4PDT (4 Form C) | 571 Ohms | DIN Rail | 13 ms | Silver Nickel (AgNi) | 60 °C | -40 °C | Diode, Lighted Indicator, Socket Included | 6 A | General Purpose | 250 VAC, 250 VDC | Non Latching | 42 mA | ATEX, cULus, EAC, IECEx, UL |
