2909738

Active

Phoenix Contact

POWER RELAY, 4PDT, 24VDC, 6A, SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2909738

Active

Phoenix Contact

POWER RELAY, 4PDT, 24VDC, 6A, SOCKET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2909738	29097 Series

Approval Agency	VDE, UL, EAC, cULus	VDE, UL, EAC, cULus, DNV, ATEX, IECEx
Coil Current	38 mA	6.5 - 42 mA
Coil Resistance	632 Ohms	9.23 - 632 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 230 VAC
Contact Form	4PDT (4 Form C)	DPDT (2 Form C), 4PDT (4 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	6 A	5 - 8.5 A
Features	Mechanical Indicator	Socket Included, Test Button, Varistor, Mechanical Indicator, Lighted Indicator, Diode
Mounting Type	Socketable	DIN Rail, Socketable
Operate Time	13 ms	10 - 15 ms
Operating Temperature [Max]	70 °C	45 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	3 ms	3 - 20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Plug In	Spring Terminal, Plug In, Screw Terminal

29097 Series

RELAY GEN PURPOSE DPDT 8A 120V

Part	Termination Style	Release Time	Coil Voltage	Contact Form	Coil Resistance	Mounting Type	Operate Time	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Rating (Current)	Relay Type	Switching Voltage	Coil Type	Coil Current	Approval Agency
Phoenix Contact 2909775	Spring Terminal	20 ms	120 VAC	DPDT (2 Form C)	17.1 kOhms	DIN Rail	10 ms	Silver Nickel (AgNi)	45 °C	-40 °C	Socket Included, Test Button, Varistor	8 A	General Purpose	250 VAC, 250 VDC	Non Latching	7 mA
Phoenix Contact 2909744	Plug In	20 ms	120 VAC	4PDT (4 Form C)	9.23 kOhms	Socketable	15 ms	Silver Nickel (AgNi)	55 °C	-40 °C	Lighted Indicator, Mechanical Indicator	6 A	General Purpose	250 VAC, 250 VDC	Non Latching	13 mA	cULus, EAC, UL, VDE
Phoenix Contact 2909774	Screw Terminal	20 ms	120 VAC	SPDT (1 Form C)	17.14 kOhms	DIN Rail	10 ms	Silver Nickel (AgNi)	50 °C	-40 °C	Lighted Indicator, Socket Included, Varistor	8.5 A	General Purpose	250 VAC, 250 VDC	Non Latching	7 mA	DNV, EAC
Phoenix Contact 2909740	Spring Terminal	20 ms	120 VAC	4PDT (4 Form C)	9.23 kOhms	DIN Rail	15 ms	Silver Nickel (AgNi)	50 °C	-40 °C	Lighted Indicator, Socket Included, Varistor	5 A	General Purpose	250 VAC, 250 VDC	Non Latching	13 mA	ATEX, cULus, EAC, IECEx, UL
Phoenix Contact 2909773	Screw Terminal	20 ms	120 VAC	DPDT (2 Form C)	17.14 kOhms	DIN Rail	10 ms	Silver Nickel (AgNi)	45 °C	-40 °C	Lighted Indicator, Socket Included, Varistor	5 A	General Purpose	250 VAC, 250 VDC	Non Latching	7 mA
Phoenix Contact 2909738	Plug In	3 ms	24 VDC	4PDT (4 Form C)	632 Ohms	Socketable	13 ms	Silver Nickel (AgNi)	70 °C	-40 °C	Mechanical Indicator	6 A	General Purpose	250 VAC, 250 VDC	Non Latching	38 mA	cULus, EAC, UL, VDE
Phoenix Contact 2909739	Spring Terminal	20 ms	230 VAC	4PDT (4 Form C)	35.39 kOhms	DIN Rail	15 ms	Silver Nickel (AgNi)	50 °C	-40 °C	Lighted Indicator, Socket Included, Varistor	5 A	General Purpose	250 VAC, 250 VDC	Non Latching	6.5 mA	ATEX, cULus, EAC, IECEx, UL
Phoenix Contact 2909741	Spring Terminal	14 ms	24 VDC	4PDT (4 Form C)	571 Ohms	DIN Rail	13 ms	Silver Nickel (AgNi)	60 °C	-40 °C	Diode, Lighted Indicator, Socket Included	6 A	General Purpose	250 VAC, 250 VDC	Non Latching	42 mA	ATEX, cULus, EAC, IECEx, UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.01
Newark	Each	1	$ 22.58
		10	$ 20.73
		25	$ 19.27
		50	$ 18.01
		100	$ 16.64
		250	$ 15.28

Description

General part information

29097 Series

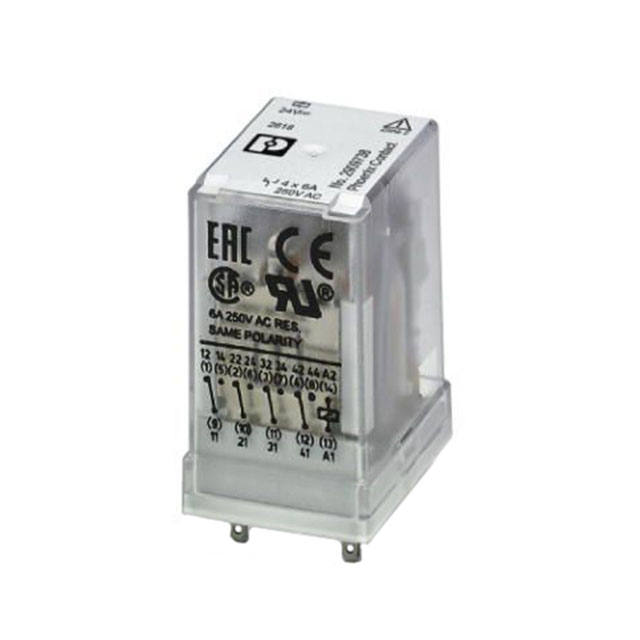

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
