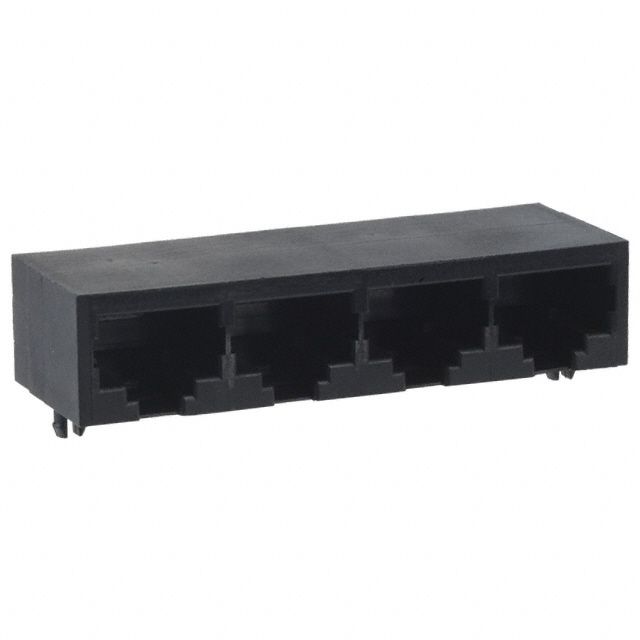

A00-432-660-450

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A UNSHLD

Search across all available documentation for this part.

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	A00-432-660-450

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	4
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Ratings	Cat5
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

CONN MOD JACK 8P8C R/A UNSHLD

Part	Tab Direction	Contact Finish	Orientation	Mounting Type	Contact Material	Number of Positions/Contacts	Ratings	Number of Rows	Shielding	LED Color	Termination	Connector Type	Number of Ports	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. A00-432-660-450	Down	Gold	90 °	Through Hole	Phosphor Bronze	8p8c (RJ45, Ethernet)	Cat5	1	Unshielded	Does Not Contain LED	Solder	Jack	4	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.73

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat5
