HMF316B7474KLHT

Active

TAIYO YUDEN

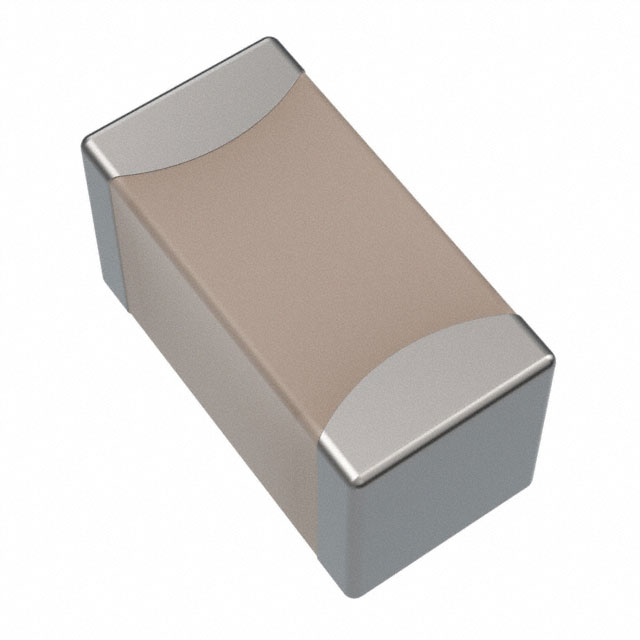

SMD MULTILAYER CERAMIC CAPACITOR, 0.47 ΜF, 100 V, 1206 [3216 METRIC], ± 10%, X7R, M SERIES

Search across all available documentation for this part.

Active

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 0.47 ΜF, 100 V, 1206 [3216 METRIC], ± 10%, X7R, M SERIES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF ±10% 100V Ceramic Capacitor X7R 1206 (3216 Metric)

Technical documentation and resources

Part	Package / Case	Capacitance	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness (Max) [Max]	Thickness (Max)	Ratings	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Tolerance	Applications	Thickness (Max) [Max]
TAIYO YUDEN HMF316B7104KLHT	1206 (3216 Metric)	100000 pF	X7R	0.063 in	1.6 mm	0.126 "	3.2 mm	0.071 "	1.8 mm	AEC-Q200	MLCC, Surface Mount	-55 °C	125 °C	100 V	10 %	Automotive, SMPS Filtering
TAIYO YUDEN HMF316B7474KLHT	1206 (3216 Metric)	0.47 µF	X7R	0.063 in	1.6 mm	0.126 "	3.2 mm	0.071 "	1.8 mm	AEC-Q200	MLCC, Surface Mount	-55 °C	125 °C	100 V	10 %	Automotive, SMPS Filtering
TAIYO YUDEN HMF316B7103MFHT	1206 (3216 Metric)	10000 pF	X7R	0.063 in	1.6 mm	0.126 "	3.2 mm	0.049 "		AEC-Q200	MLCC, Surface Mount	-55 °C	125 °C	100 V	20 %	Automotive, SMPS Filtering	1.25 mm
TAIYO YUDEN HMF316B7222MFHT	1206 (3216 Metric)	2200 pF	X7R	0.063 in	1.6 mm	0.126 "	3.2 mm	0.049 "		AEC-Q200	MLCC, Surface Mount	-55 °C	125 °C	100 V	20 %	Automotive, SMPS Filtering	1.25 mm
TAIYO YUDEN HMF316B7103KFHT	1206 (3216 Metric)	10000 pF	X7R	0.063 in	1.6 mm	0.126 "	3.2 mm	0.049 "		AEC-Q200	MLCC, Surface Mount	-55 °C	125 °C	100 V	10 %	Automotive, SMPS Filtering	1.25 mm
TAIYO YUDEN HMF316B7472MFHT	1206 (3216 Metric)	4700 pF	X7R	0.063 in	1.6 mm	0.126 "	3.2 mm	0.049 "		AEC-Q200	MLCC, Surface Mount	-55 °C	125 °C	100 V	20 %	Automotive, SMPS Filtering	1.25 mm
