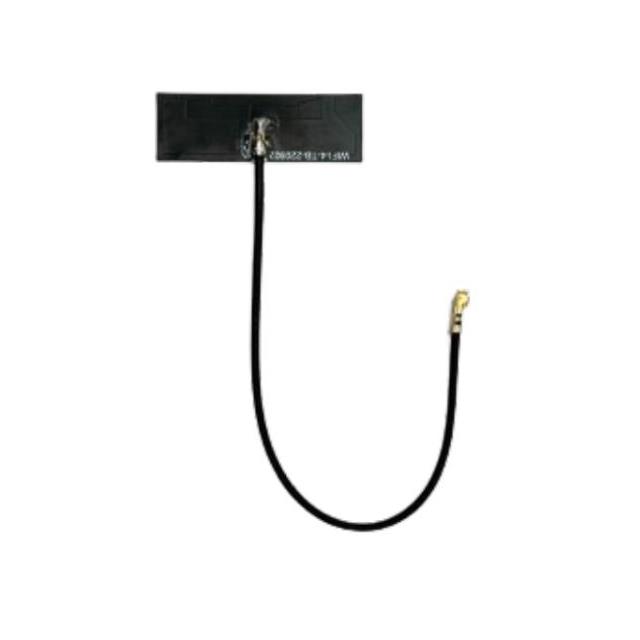

ST1224-10-401-A

Active

AMPHENOL RF

RF ANTENNA INTERNAL AMC PLUG MUL

Search across all available documentation for this part.

Active

AMPHENOL RF

RF ANTENNA INTERNAL AMC PLUG MUL

Technical Specifications

Parameters and characteristics for this part

RF ANTENNA INTERNAL AMC PLUG MUL

Part	Gain	Return Loss	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Number of Bands	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Mounting Type	Frequency (Center/Band)	Features	Features	Power - Max [Max]
AMPHENOL RF ST1224-10-401-A	2.1 dBi	-10 dB	2.4 GHz, 5.15 GHz	2.5 GHz, 7.2 GHz	PCB Trace	0.2 mm	0.008 in	WiFi	2	Wi-Fi	4 GHz	2 GHz	3 GHz	Adhesive	2.45 GHz, 6.18 GHz	Cable	100 mm	1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.45GHz, 6.18GHz Wi-Fi PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.2GHz 2.1dBi Adhesive
