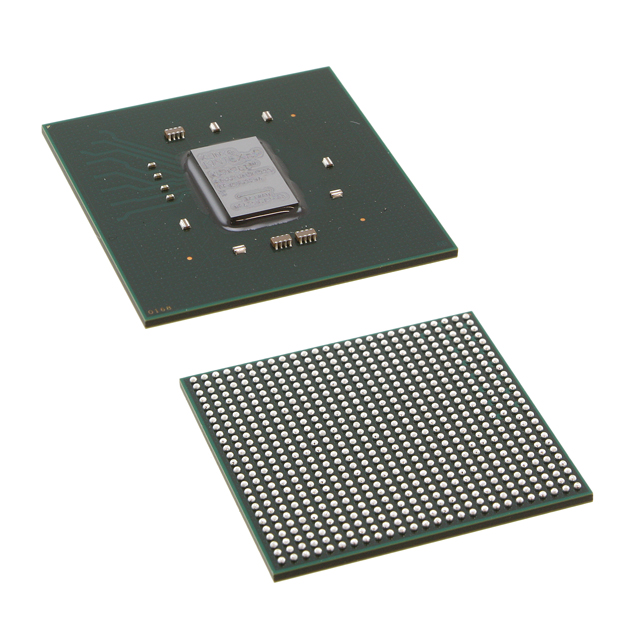

XC7K160T-2FFG676I
ActiveAMD
IC FPGA 400 I/O 676FCBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsKintex-7 FPGAs Brief
XC7K160T-2FFG676I
ActiveAMD
IC FPGA 400 I/O 676FCBGA
Deep-Dive with AI
DocumentsKintex-7 FPGAs Brief
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XC7K160T-2FFG676I | XC7K160 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 400 I/O | 285 - 400 |
| Number of Logic Elements/Cells | 162240 | 162240 |
| Operating Temperature [Max] | 100 °C | 85 - 100 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | - | FCBGA, 484-BBGA |
| Supplier Device Package | 676-FCBGA (27x27) | 676-FCBGA (27x27) |
| Total RAM Bits | 11980800 | 11980800 |
| Voltage - Supply [Max] | 1.03 V | 0.93 - 1.03 V |
| Voltage - Supply [Min] | 0.97 V | 0.87 - 0.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 751.40 | |
| LCSC | N/A | 1 | $ 66.23 | |
| 40 | $ 63.69 | |||
| MacroQuest Electronics | N/A | 1 | $ 84.29 | |
| 40 | $ 67.42 | |||
| 200 | $ 50.56 | |||
| Win Source Electronics | N/A | 1 | $ 60.65 | |
| 2 | $ 56.74 | |||
| 3 | $ 54.78 | |||
| 4 | $ 50.87 | |||
| 6 | $ 48.91 | |||
| 7 | $ 46.96 | |||
XC7K160 Series
IC FPGA 285 I/O 484FCBGA
| Part | Total RAM Bits | Number of I/O | Operating Temperature [Min] | Operating Temperature [Max] | Number of Logic Elements/Cells | Package / Case | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|
11980800 | 285 | -40 °C | 100 °C | 162240 | 484-BBGA, FCBGA | Surface Mount | 1.03 V | 0.97 V | ||
11980800 | 400 I/O | 0 °C | 85 C | 162240 | Surface Mount | 1.03 V | 0.97 V | 676-FCBGA (27x27) | ||
11980800 | 400 I/O | -40 °C | 100 °C | 162240 | Surface Mount | 1.03 V | 0.97 V | 676-FCBGA (27x27) | ||
11980800 | 400 I/O | -40 °C | 100 °C | 162240 | Surface Mount | 1.03 V | 0.97 V | 676-FCBGA (27x27) | ||
11980800 | 285 | -40 °C | 100 °C | 162240 | 484-BBGA, FCBGA | Surface Mount | 1.03 V | 0.97 V | ||
11980800 | 400 I/O | -40 °C | 100 °C | 162240 | Surface Mount | 1.03 V | 0.97 V | 676-FCBGA (27x27) | ||
11980800 | 285 | -40 °C | 100 °C | 162240 | 484-BBGA, FCBGA | Surface Mount | 1.03 V | 0.97 V | ||
11980800 | 400 I/O | 0 °C | 100 °C | 162240 | Surface Mount | 1.03 V | 0.97 V | 676-FCBGA (27x27) | ||
11980800 | 285 | -40 °C | 100 °C | 162240 | 484-BBGA, FCBGA | Surface Mount | 1.03 V | 0.97 V | ||
11980800 | 400 I/O | -40 °C | 100 °C | 162240 | Surface Mount | 1.03 V | 0.97 V | 676-FCBGA (27x27) | ||
11980800 | 400 I/O | 0 °C | 85 C | 162240 | Surface Mount | 1.03 V | 0.97 V | 676-FCBGA (27x27) | ||
11980800 | 285 | -40 °C | 100 °C | 162240 | 484-BBGA, FCBGA | Surface Mount | 0.93 V | 0.87 V |
Description
General part information
XC7K160 Series
Kintex®-7 Field Programmable Gate Array (FPGA) IC 400 11980800 162240 676-BBGA, FCBGA
