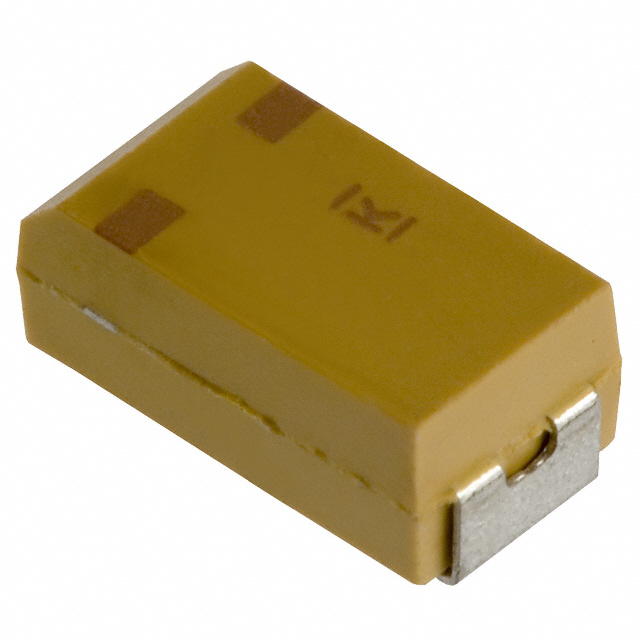

T496C226M016AT

Active

KEMET

CAP TANT 22UF 20% 16V 2312

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T496C226M016AT

Active

KEMET

CAP TANT 22UF 20% 16V 2312

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T496C226M016AT

Capacitance	22 µF
ESR (Equivalent Series Resistance)	1.6 Ohm
Features	Fail Safe with Built-in Fuse
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	20 %
Type	Molded
Voltage - Rated	16 V

T496C Series

Part	Mounting Type	Features	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Lifetime @ Temp.	Capacitance	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Failure Rate
KEMET T496C226M016AT	Surface Mount	Fail Safe with Built-in Fuse	Molded	3.2 mm	6 mm	0.236 in	0.126 "	16 V	2000 Hrs	22 µF	6032 Metric	2312	-55 °C	125 °C	1.6 Ohm	20 %
KEMET T496C475K025ATE2K5	Surface Mount	Fail Safe with Built-in Fuse	Molded	3.2 mm	6 mm	0.236 in	0.126 "	25 VDC	2000 Hrs	4.7 µF	6032 Metric	2312	-55 °C	125 °C	2.5 Ohm	10 %
KEMET T496C685M020AT	Surface Mount	Fail Safe with Built-in Fuse	Molded	3.2 mm	6 mm	0.236 in	0.126 "	20 V	2000 Hrs	6.8 ÁF	6032 Metric	2312	-55 °C	125 °C	2 Ohms	20 %
KEMET T496C226K016ATE1K6	Surface Mount	Fail Safe with Built-in Fuse	Molded	3.2 mm	6 mm	0.236 in	0.126 "	16 V	2000 Hrs	22 µF	6032 Metric	2312	-55 °C	125 °C	1.6 Ohm	10 %
KEMET T496C106K020ATE2K0	Surface Mount	General Purpose	Molded	3.2 mm	6 mm	0.236 in	0.126 "	20 V	2000 Hrs	10 µF	6032 Metric	2312	-55 °C	125 °C	2 Ohm	10 %
KEMET T496C226M010ATE2K0	Surface Mount	General Purpose	Molded	3.2 mm	6 mm	0.236 in	0.126 "	10 V	2000 Hrs	22 µF	6032 Metric	2312	-55 °C	125 °C	2 Ohm	20 %
KEMET T496C156K016AT	Surface Mount	Fail Safe with Built-in Fuse	Molded	3.2 mm	6 mm	0.236 in	0.126 "	16 V	2000 Hrs	15 µF	6032 Metric	2312	-55 °C	125 °C	2 Ohms	10 %
KEMET T496C106M016ATE2K0	Surface Mount	Fail Safe with Built-in Fuse	Molded	3.2 mm	6 mm	0.236 in	0.126 "	16 V	2000 Hrs	10 µF	6032 Metric	2312	-55 °C	125 °C	2 Ohms	20 %
KEMET T496C106K025BH61107505	Surface Mount	Fail Safe with Built-in Fuse High Reliability	Molded	3.2 mm	6 mm	0.236 in	0.126 "	25 VDC	2000 Hrs	10 µF	6032 Metric	2312	-55 °C	125 °C	600 mOhm	10 %	2.5 mm	0.098 in	COTS	B (0.1%)
KEMET T496C106K020AT	Surface Mount	Fail Safe with Built-in Fuse	Molded	3.2 mm	6 mm	0.236 in	0.126 "	20 V	2000 Hrs	10 µF	6032 Metric	2312	-55 °C	125 °C	2 Ohms	10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.02

Description

General part information

T496C Series

22 µF Molded Tantalum Capacitors 16 V 2312 (6032 Metric) 1.6Ohm
